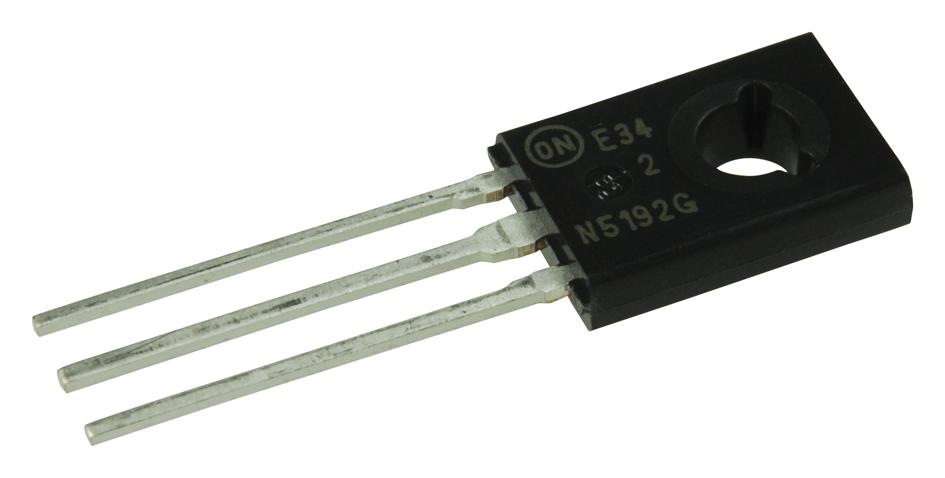

ONSEMI 2N5192G Silicon NPN Power Transistor
The ONSEMI 2N5192G is a silicon NPN power transistor suitable for a wide range of applications including power amplifier and switching circuits. It offers a Vceo of 80V, Vcbo of 80V, and a collector current of 4.0 Adc. The device is Pb-Free and RoHS Compliant, ensuring environmental responsibility. Its complementary PNP transistors are the 2N5194 and 2N5195, making it a versatile choice for various circuit designs. The transistor's thermal characteristics and switching times are optimized for efficient and reliable performance in demanding applications.
ONSEMI 2N5192G Silicon NPN Power Transistor Specifications:
- VCEO: 80 Vdc
- VCBO: 80 Vdc
- VEBO: 5.0 Vdc
- IC: 4.0 Adc
- IB: 1.0 Adc
- PD: 40 W
- TJ: -65 to +150 °C
- HBM: 3B V
- MM: C V
- RJC: 3.12 °C/W
- VCE(sus): 40 Vdc
- ICEO: 1.0 mAdc
- ICEX: 0.1 mAdc
- ICBO: 0.1 mAdc
- IEBO: 1.0 mAdc
- hFE: 10 to 100
- VCE(sat): 0.6 to 1.4 Vdc
- VBE(on): 1.2 Vdc
- fT: 2.0 MHz
Buy the 2N5192G ONSEMI Silicon NPN Power Transistor | myMectronic
Purchase the ONSEMI 2N5192G with confidence and security through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 2N5192G?
You can click on the BUY or RFQ button to purchase 2N5192G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2N5192G?
You can download the 2N5192G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2N5192G?
ONSEMI
