ONSEMI ESDR0524PMUTAG Transient Voltage Suppressor
The ESDRO524P is a transient voltage suppressor designed for high-speed data lines like HDMI, DVI, and Display Port. It offers ultra-low capacitance of 0.3 pF, with ESD protection exceeding 8 kV for contact and 400 V for air discharge. Its low clamping voltage of 15 V ensures protection without signal degradation, making it an ideal choice for sensitive electronics. Its compact UDFN10 package simplifies PCB layout and maintains impedance match for differential data lines, ensuring reliable surge protection in various electronic applications.
ONSEMI ESDR0524PMUTAG Transient Voltage Suppressor Specifications:
- Package: UDFN10 2.5x1.0 mm
- Clamping Voltage: 15 V at 1 A pulse
- ESD Rating: >8 kV contact, >400 V air
- Reverse Working Voltage: 5 V
- Breakdown Voltage: 5.5 V at 1 mA
- Reverse Leakage Current: 1.0 μA at 5 V
- Junction Capacitance: 0.3 pF between I/O to I/O, 0.5 to 0.8 pF between I/O and GND
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Maximum Solder Temperature: 260°C for 10 seconds

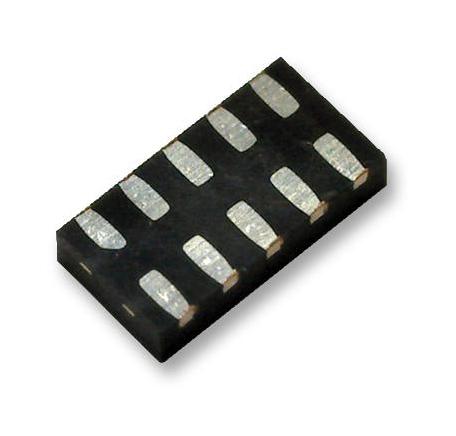

Buy the Buy ON Semiconductor ESDR0524P Part Number ESDR0524P Online
Discover the ON Semiconductor ESDR0524P Transient Voltage Suppressor, providing reliable ESD protection for high-speed data lines like HDMI and Display Port. With ultra-low capacitance of 0.3 pF and voltage clamping at 15 V, this device safeguards sensitive electronics from ESD surges exceeding 8 kV contact and 400 V air discharge. Its compact UDFN10 package ensures easy PCB integration and maintains impedance match, ideal for high-speed differential signals. Perfect for consumer electronics and communication equipment requiring robust ESD protection.
Order your ON Semiconductor ESDR0524P transient voltage suppressor today and enhance high-speed data line protection with low capacitance ESD suppression solutions.
Frequently Asked Questions
Where can I buy ONSEMI ESDR0524PMUTAG?
You can click on the BUY or RFQ button to purchase ESDR0524PMUTAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESDR0524PMUTAG?
You can download the ESDR0524PMUTAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESDR0524PMUTAG?
ONSEMI
