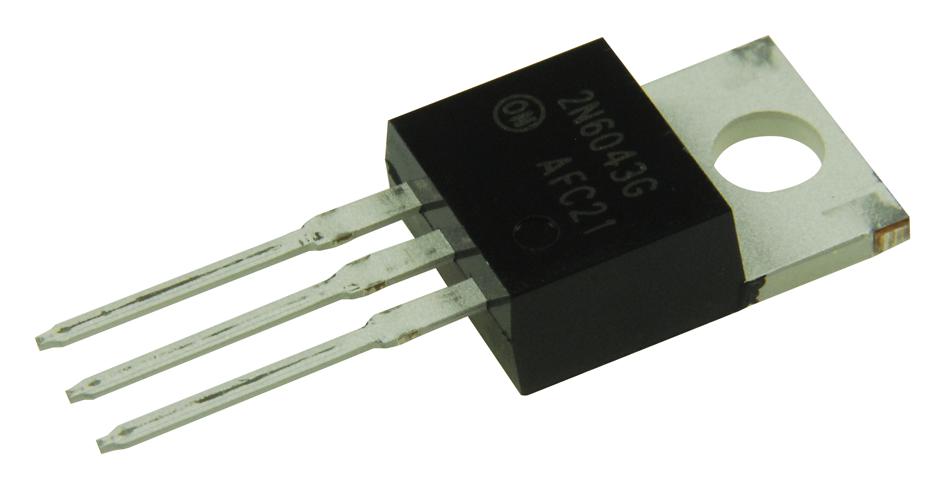

ONSEMI 2N6043G Medium Power Silicon Transistor
The 2N6043G is a medium-power NPN Darlington silicon transistor capable of handling up to 8A. It features a monolithic construction with built-in base-emitter shunt resistors, high DC current gain (hFE = 2500 at 4A), and complies with UL94V-0 flammability standards. Suitable for general-purpose amplification and low-speed switching applications, it is ideal for industrial and power management circuits, offering reliable performance, collector-emitter voltage of 60 V, and robust power dissipation in compact TO-220 packages, ensuring efficient operation in various electronic systems.
ONSEMI 2N6043G Medium Power Silicon Transistor Specifications:
- Collector-Emitter Voltage: 60 Vde for 2N6040, 2N6043; 100 Vde for 2N6042, 2N6045
- Collector-Base Voltage: 60 Vde for 2N6040, 2N6043; 100 Vde for 2N6042, 2N6045
- Emitter-Base Voltage: 5.0 Vde
- Collector Current Continuous: 8.0 Adc; Peak: 16 Adc
- Base Current: 120 mAdc
- Total Power Dissipation at 25°C: 75 W, derating 0.60 W/°C above 25°C
- Operating Junction Temperature Range: -65°C to +150°C
- Thermal Resistance, Junction-to-Case: 1.67°C/W
- Thermal Resistance, Junction-to-Ambient: 57°C/W
- Encapsulated in TO-220 package, Mechanical dimensions conforming to industry standards
- Built-in base-emitter shunt resistors, epoxy meets UL 94 V-0, and is RoHS compliant
Buy the Buy ON Semiconductor 2N6043G Transistor Part Number 2N6043G Online
Experience the reliability and efficiency of the ON Semiconductor 2N6043G medium-power NPN Darlington transistor, capable of handling up to 8A. This robust device features high current gain, built-in base-emitter resistors, and compliance with UL94V-0 standards. Perfect for general-purpose amplification, low-speed switching, industrial automation, and power management circuits, its compact TO-220 package ensures easy installation. Order online today for quick delivery and trusted performance in your electronic projects and industrial solutions.
Get ON Semiconductor 2N6043G transistor today—designed for power switching and reliable amplification with high current capacity.
Frequently Asked Questions
Where can I buy ONSEMI 2N6043G?
You can click on the BUY or RFQ button to purchase 2N6043G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2N6043G?
You can download the 2N6043G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2N6043G?
ONSEMI
