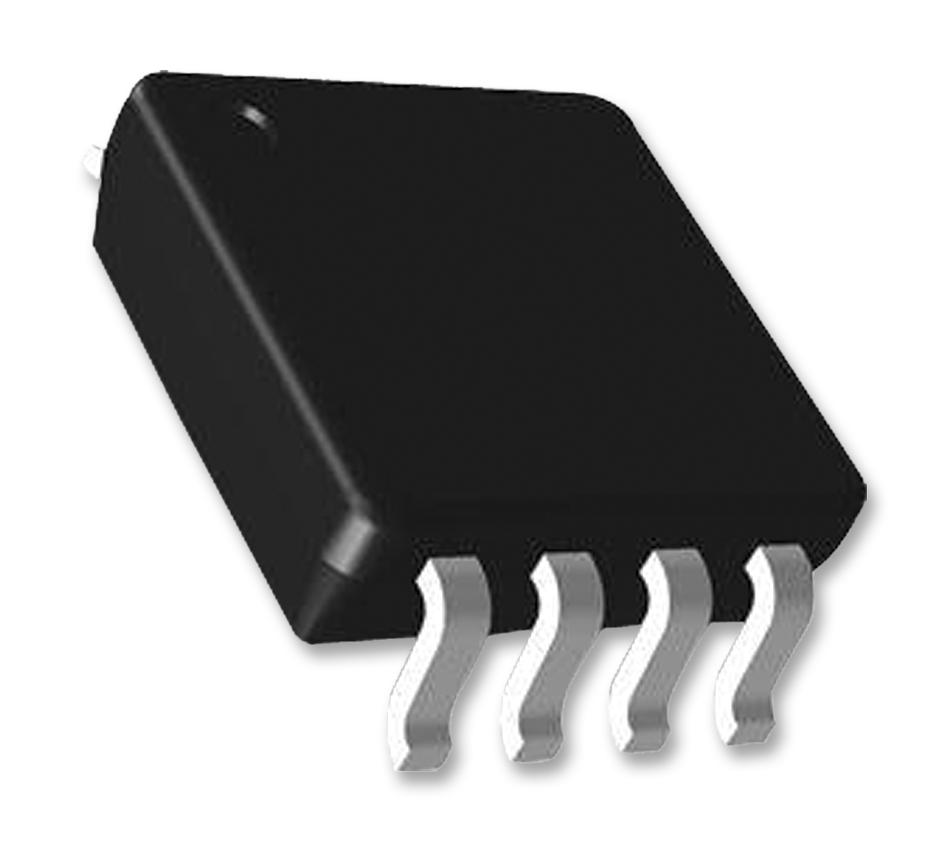

ONSEMI NC7WV125K8X Dual Buffer
The NC7WV125 is a dual buffer with 3-STATE output from Fairchild's Ultra Low Power-A series. Designed for high speed, low power, and wide voltage operation from 0.9V to 3.6V, it offers over-voltage tolerant I/O and high static drive strength. Fabricated with advanced CMOS technology, it features ultra-small MicroPak™ packages, noise reduction circuitry, and ultra low dynamic power consumption. Ideal for battery-powered applications and high-speed digital systems requiring reliable, fast, and low-power logic buffering.
ONSEMI NC7WV125K8X Dual Buffer Specifications:
- Supply Voltage: 0.9V to 3.6V
- Over-voltage Tolerant I/O: Yes at Vcc from 0.9V to 3.6V
- Propagation Delay: 1.0 ns typ at 2.7V to 3.6V, 2.0 ns at 2.3V to 2.7V, 3.0 ns at 1.65V to 1.95V
- Output Current: 424mA at 3.0V, 418mA at 2.3V, 46mA at 1.65V, 4mA at 1.4V, 42mA at 1.1V, 40.1mA at 0.9V
- Power Consumption: Ultra low dynamic power, noise/EMI reduction circuitry
- Package: MicroPak™ Pb-Free, 8-Lead US8 JEDEC MO-187, 3.1mm width
- Operating Temperature: -40°C to +85°C
- Input Voltage: OV to 3.6V, recommended operating from OV to 3.6V
- Input and Output Voltage Supply: Vcc from 0.9V to 3.6V
- DC Input Diode Current: 450mA max, DC Output Diode Current: 50mA max
- Absolute Maximum Ratings: Vcc, Vin, Vout up to +4.6V, Storage temp -65°C to +150°C
- Electrical Characteristics: High logic levels at low voltages, enable and disable times within microseconds, and input capacitance around 20fF
Buy the ON Semiconductor Series ULP-A Dual Buffer: NC7WV125K8X
Explore the high-performance, ultra low power dual buffer with 3-STATE output from ON Semiconductor. The NC7WV125K8X operates from 0.9V to 3.6V, delivering high drive strength, fast propagation delay, and noise reduction in compact MicroPak™ packages. Designed for battery-powered systems and high-speed digital applications, its advanced CMOS technology ensures reliable performance with minimal power consumption. Buy online today for consistent quality, fast delivery, and the best solutions for your digital logic needs.
Order your ON Semiconductor Series ULP-A Dual Buffer NC7WV125K8X today and give your projects the dependable high-speed low-power logic buffering they deserve.
Frequently Asked Questions
Where can I buy ONSEMI NC7WV125K8X?
You can click on the BUY or RFQ button to purchase NC7WV125K8X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NC7WV125K8X?
You can download the NC7WV125K8X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NC7WV125K8X?
ONSEMI
