ONSEMI NLAS5223BLMNR2G Dual Analog Switch
The NLAS5223B and NLAS5223BL are dual CMOS analog switches designed for high-speed, low-resistance switching applications. They feature ultra-low Ron of 0.35 Ω at VEC = 4.3 V, with guaranteed Break Before Make switching to prevent short circuits. Suitable for audio, modems, and signal routing, they operate from 1.65 V to 4.5 V with high off-channel isolation and low standby current. The devices are available in Pb-Free packages, supporting various supply voltages and compatible with 2.8 V or 1.8 V chipsets for flexible integration into portable electronic systems.
ONSEMI NLAS5223BLMNR2G Dual Analog Switch Specifications:
- Supply Voltage Range: 1.65 V to 4.5 V
- Ron: 0.35 Ω (typ) at VEC = 4.3 V
- Break Before Make switching guarantees no short circuits
- Channel Isolation: high off-channel isolation
- Standby Current: <50 nA
- Maximum Continuous Current: 320 mA per switch

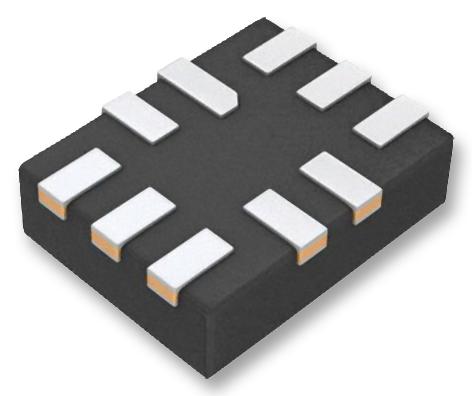

- Package Options: WQFN10 (1.4x1.8 mm), Pb-Free
- Operating Temperature: -40°C to +85°C
- Input Control Voltage: 1.3 to 4.5 V (for NLAS5223BL), 1.4 to 4.3 V (for NLAS5223B)
- Capacitance: NO/NC port ~60 pF, COM port ~200 pF
- High-Speed Switching: Turn-On/Off times 1.5–60 ns
- Built-in protection diodes, large current clamping at inputs
- Application: Audio switching, mobile devices, broadband modems
Buy the Buy ON Semiconductor NLAS5223B Part Number NLAS5223BL Online
Secure your ON Semiconductor NLAS5223BL dual CMOS analog switch today online to ensure reliable, high-speed switching in your electronic projects. This device offers ultra-low Ron, operates from 1.65 V to 4.5 V, and delivers low power consumption with a maximum current of 320 mA per switch. Ideal for audio, modem, and signal routing applications, it guarantees Break Before Make switching, providing safe and interference-free operation. Available in Pb-Free packages, order now for expedited delivery and integrate this versatile switch into your designs seamlessly.
Order your ON Semiconductor NLAS5223BL dual analog switch today and enhance your signal routing with low resistance and high reliability in portable devices.
Frequently Asked Questions
Where can I buy ONSEMI NLAS5223BLMNR2G?
You can click on the BUY or RFQ button to purchase NLAS5223BLMNR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NLAS5223BLMNR2G?
You can download the NLAS5223BLMNR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NLAS5223BLMNR2G?
ONSEMI
