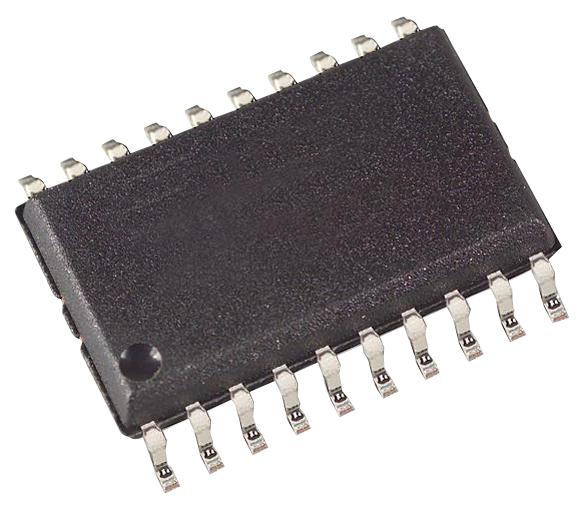

ONSEMI MC74ACT245DWG Octal Bidirectional Transceiver
The MC74AC245/74ACT245 is an octal bidirectional transceiver with 3-state outputs, designed for bus-oriented applications. It features eight non-inverting buffers with TTL-compatible inputs, source/sink current capability of 24 mA at the A and B ports, and mode control via Transmit/Receive and Output Enable inputs. When enabled, it allows seamless data transfer in either direction, with high-impedance conditions when disabled. Compact packages such as SOIC-20W and TSSOP-20 ensure easy integration into complex electronic systems, providing reliable performance for data communication and microcontroller interfacing, with free space for customization and detailed specifications for various operating conditions.
ONSEMI MC74ACT245DWG Octal Bidirectional Transceiver Specifications:
- Package Types: SOIC-20W, TSSOP-20
- Supply Voltage Range: -0.5 to +7.0 V
- Input Voltage Range: -0.5 to Veo +0.5 V
- Output Voltage Range: -0.5 to Veo +0.5 V
- DC Input Diode Current: 420 mA
- DC Output Diode Current: 50 mA
- Output Sink/Source Current: 24 mA
- Storage Temperature Range: -65°C to +150°C
- Junction Temperature: 140°C
- Lead Temperature (10 sec): 260°C
- Thermal Resistance (SOIC-20W): 65.8 °C/W, (TSSOP-20): 110.7 °C/W
- ESD Withstand Voltage: >2000 V (Human Body Model)
- Propagation Delay (Typical): 15-50 ns depending on configuration
- Input Rise/Fall Time: 10-8 ns at 4.5V and 5.5V respectively
- Maximum Power Dissipation Capacitance: 45 pF
- Operating Ambient Temperature: -40°C to +85°C
Buy the Buy ON Semiconductor MC74AC245 or MC74ACT245 Part Number DWG Online
Purchase the ON Semiconductor MC74AC245 and MC74ACT245 online today to benefit from dependable bus communication solutions. These high-speed octal bidirectional transceivers feature 3-state outputs, 24 mA sourcing and sinking capabilities, and TTL-compatible inputs, making them ideal for microcontroller and data bus applications. Their compact packages, such as SOIC-20W and TSSOP-20, facilitate easy integration into complex systems while ensuring robust performance. Secure your inventory with fast online ordering, ensuring reliable operation in various industrial or consumer electronics environments.
Buy ON Semiconductor MC74ACT245 now and experience unmatched reliability and performance with a high-speed bidirectional transceiver designed for efficient data transfer.
Frequently Asked Questions
Where can I buy ONSEMI MC74ACT245DWG?
You can click on the BUY or RFQ button to purchase MC74ACT245DWG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74ACT245DWG?
You can download the MC74ACT245DWG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74ACT245DWG?
ONSEMI
