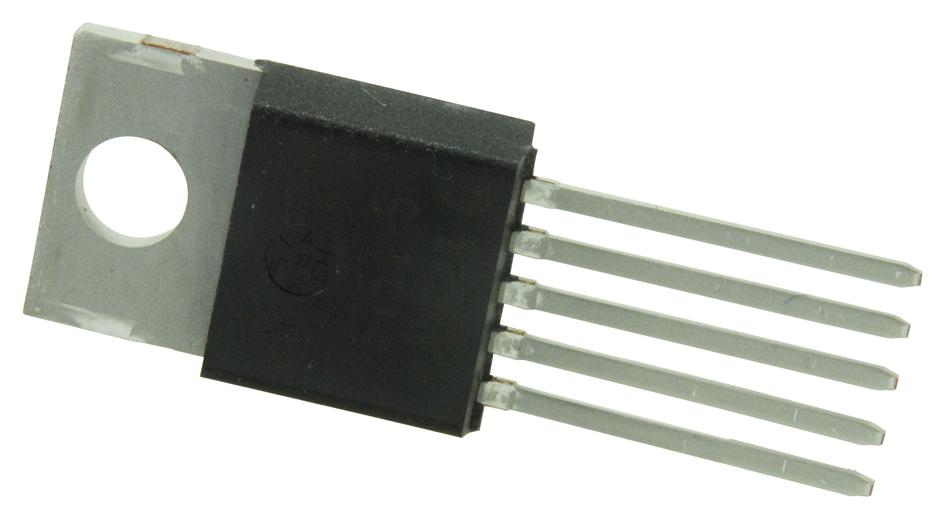

ONSEMI LM2575T5G Step-Down Regulator
The LM2575T-5G is a step-down switching regulator designed to simplify power supply design by minimizing external components. It is optimized for use in switch-mode power supplies, offering high efficiency compared to linear regulators, especially at higher input voltages. This regulator features a guaranteed ±4% output voltage tolerance within specified input and load conditions, and a ±10% tolerance on the oscillator frequency. It includes external shutdown capability with a typical standby current of 80A, thermal shutdown, and current limit protection. Its high efficiency often eliminates the need for heat sinks or allows for smaller cooling solutions. The LM2575T-5G is compatible with readily available standard inductors, making it suitable for power management and industrial applications.
ONSEMI LM2575T5G Step-Down Regulator Specifications:
- Input Voltage Range: 4.75 V to 40 V
- Output Voltage: 5.0 V
- Maximum Output Current: 1.0 A
- Output Voltage Tolerance: ±4%
- Oscillator Frequency Tolerance: ±10%
- Shutdown Current: 80A typical
- Thermal Shutdown Protection: Yes
- Current Limit Protection: Yes
- Package Type: TO-220, D2PAK
- Junction Operating Temperature Range: -40°C to +125°C
- Case Thermal Resistance Junction-to-Ambient: 65°C/W (TO-220), 70°C/W (D2PAK)
- Efficiency: Up to 88% at full load
- Power Dissipation: Internally limited
- Standby Quiescent Current: 80A typical
Buy the ON Semiconductor LM2575T5G – Reliable Step-Down Regulator for Industrial Applications
Purchase the ON Semiconductor LM2575T-5G step-down regulator online now and experience high efficiency power conversion with minimal external components. Perfect for industrial applications requiring reliable voltage regulation, this regulator provides a guaranteed ±4% output voltage accuracy, incorporates thermal shutdown and current limit protections, and works efficiently within a wide input voltage range. Its robust design and compatibility with standard inductors make it an ideal solution for simplifying power supply design, reducing heatsink requirements, and ensuring long-term operational stability in demanding environments.
Order your ON Semiconductor LM2575T-5G step-down switching regulator today and ensure your industrial power supplies are efficient, reliable, and easy to implement.
Frequently Asked Questions
Where can I buy ONSEMI LM2575T5G?
You can click on the BUY or RFQ button to purchase LM2575T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM2575T5G?
You can download the LM2575T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM2575T5G?
ONSEMI
