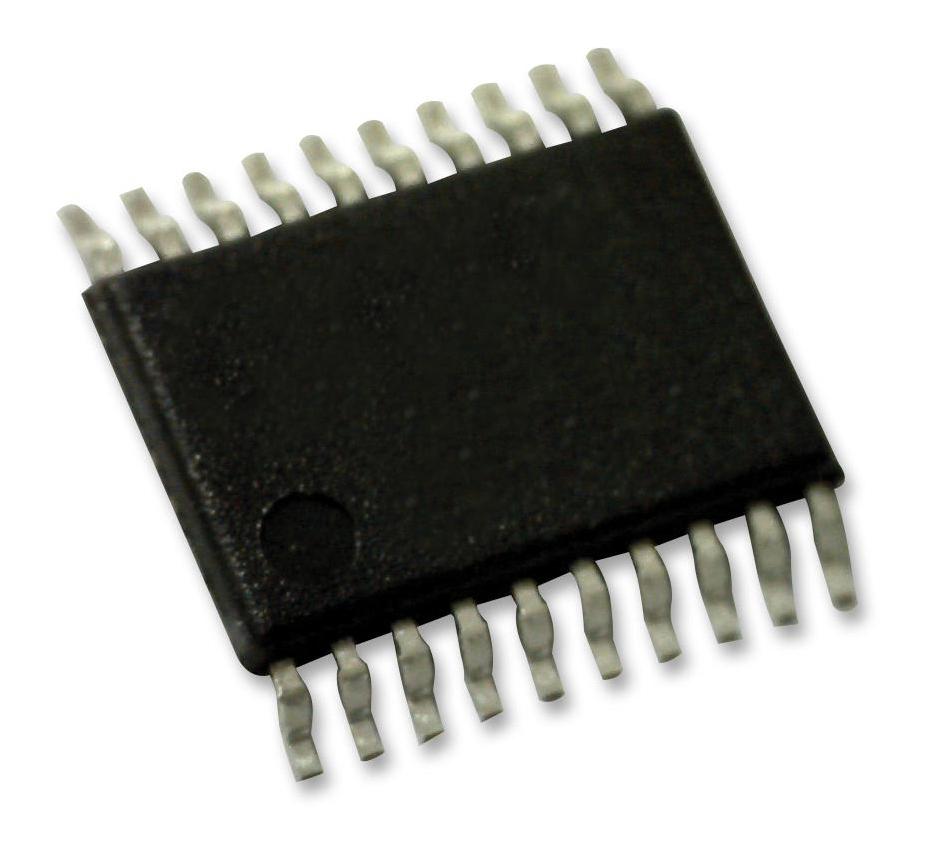

ONSEMI 74ACT245MTCX Octal Bidirectional Transceiver
The 74ACT245 is a high-speed octal bidirectional transceiver with 3-STATE outputs, ideal for bus-oriented applications. It features TTL-compatible inputs, source/sink current capability of 24mA, and A and B ports controlled through Transmit/Receive and Output Enable inputs. Available in various package types including SOIC, SOP, TSSOP, and PDIP, it ensures reliable data transfer with low capacitance and controlled propagation delay times. This device supports high-performance digital systems with robust electrical characteristics and a compact form factor suitable for dense circuit board layouts.
ONSEMI 74ACT245MTCX Octal Bidirectional Transceiver Specifications:
- Package Types: SOIC, SOP, TSSOP, PDIP
- Number of Channels: 8 bidirectional buffers
- Output Current: source/sink 24mA
- Input Compatibility: TTL-compatible
- Propagation Delay: 3.3ns to 8.5ns depending on model and conditions
- Voltage Range: 4.5V to 5.5V for ACT device, 2.0V to 6.0V for AC device
- Operating Temperature: 40°C to +85°C
- Pin Count: 20 leads
- Dimensions: PKG in millimeters as per JEDEC standards (e.g., MS-001, MO-153)
- Data Rate: High-speed digital data transfer suited for communication buses
- Power Dissipation Capacitance: 45 pF
- Input/Output Capacitance: 15 pF
Buy the ON Semiconductor 74ACT245MTCX – Reliable Octal Bidirectional Transceiver for Industrial Applications
Purchase the high-performance 74ACT245 octal bidirectional transceiver online today. Designed for bus-oriented applications, it offers fast switching, TTL compatibility, and robust electrical characteristics. Available in various compact packages like SOIC, SOP, TSSOP, and PDIP, it provides reliable data transfer with source/sink current capability of 24mA, low capacitance, and controlled propagation delay times. Perfect for digital systems requiring efficient and high-speed communication between multiple data buses. Order now to enhance your projects.
Buy ON Semiconductor 74ACT245MTCX now and experience unmatched reliability and high-speed data transfer in your digital circuits.
Frequently Asked Questions
Where can I buy ONSEMI 74ACT245MTCX?
You can click on the BUY or RFQ button to purchase 74ACT245MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74ACT245MTCX?
You can download the 74ACT245MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74ACT245MTCX?
ONSEMI
