ONSEMI NCP711BMT300TBG Low Dropout Regulator
The NCP711 is a highly efficient CMOS low dropout regulator designed to operate with input voltages up to 18 V and deliver a maximum load current of 100 mA. It features very low quiescent current of just 1 µA, making it ideal for battery-powered, always-on systems. The device includes internal protections against short circuits and over-temperature conditions. Available in small TSOP-5 and WDFN-6 packages, it offers adjustable and fixed output voltages, a power good indicator, and built-in soft-start to minimize inrush currents, ensuring reliable operation in various applications.
ONSEMI NCP711BMT300TBG Low Dropout Regulator Specifications:
- Operating Input Voltage Range: 2.7 V to 18 V
- Output Voltage: 1.2 V to 17 V
- Maximum Output Current: 100 mA
- Quiescent Current: 1 µA typical
- Dropout Voltage: 215 mV at 100 mA
- Output Voltage Accuracy: ±1%
- Power Good Output: Available in Version B
- Built-in Soft Start Circuit
- Protection: Over-Current and Thermal Shutdown
- Package Options: TSOP-5 and WDFN-6 (2x2)
- Package Dimensions: TSOP-5 and WDFN-6 sizes specified in datasheet
- Output voltage can be fixed or adjustable via external resistors
- High input voltage tolerance up to 18 V
- Enable pin with internal pull-up
- Typical application in battery-powered devices, home automation, RF, metering, and remote controls
- RoHS compliant, Pb-Free

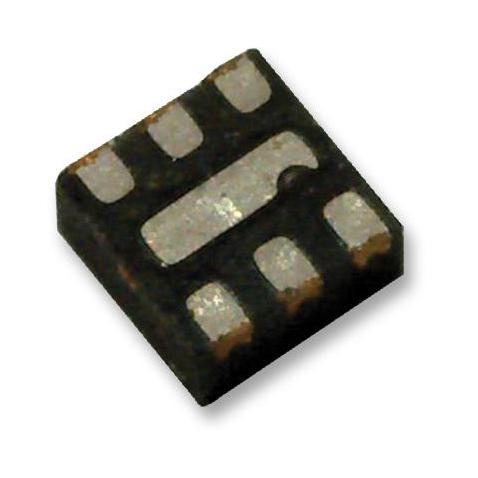

Buy the Buy ON Semiconductor NCP711BMT300TBG Part Number 300TBG Online
Enhance your electronic projects with the ON Semiconductor NCP711BMT300TBG low dropout regulator. This compact, efficient device supports input voltages up to 18 V and provides up to 100 mA of stable output current, ideal for battery-powered and portable applications. Features include ultra-low quiescent current of 1 µA, built-in protections against short circuits and overheating, a power good indicator, and a soft start circuit to reduce inrush current. Available in small TSOP-5 and WDFN packages, it guarantees reliable performance and easy integration.
Get ON Semiconductor NCP711BMT300TBG today—built for precise voltage regulation and long-lasting durability in compact packages.
Frequently Asked Questions
Where can I buy ONSEMI NCP711BMT300TBG?
You can click on the BUY or RFQ button to purchase NCP711BMT300TBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP711BMT300TBG?
You can download the NCP711BMT300TBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP711BMT300TBG?
ONSEMI
