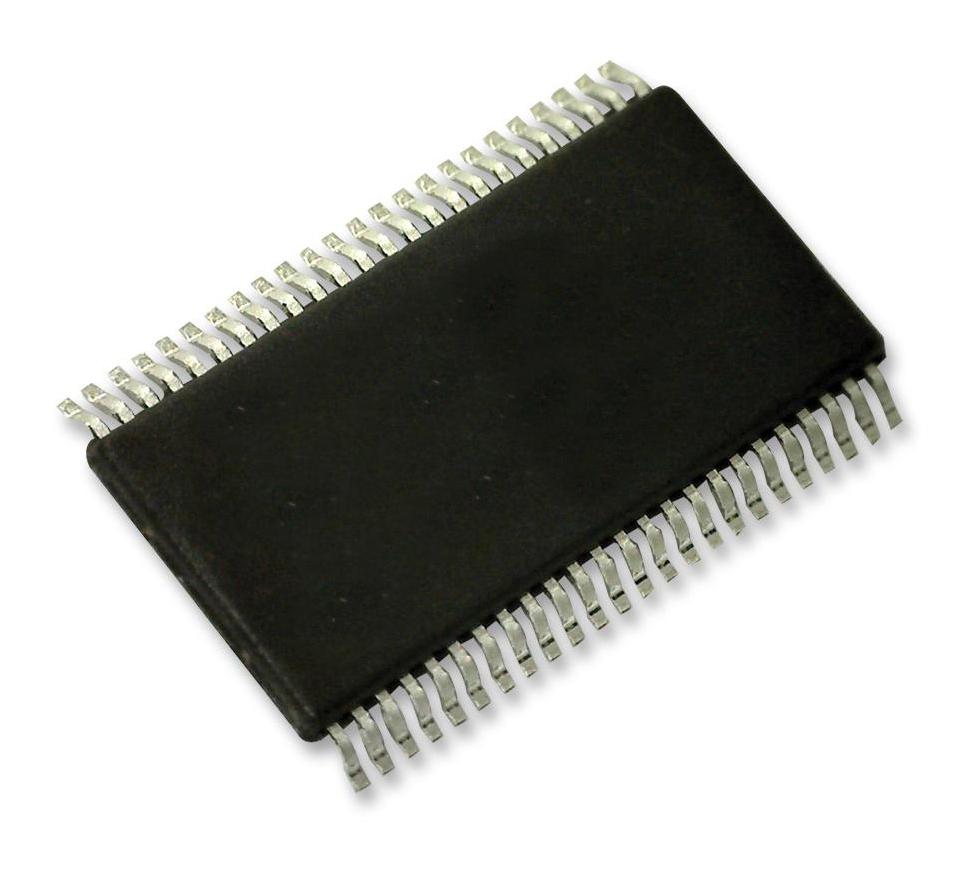

ONSEMI 74LVT162245MTD Bus Transceiver
The 74LVT162245 and LVTH162245 are high-speed, low-voltage 16-bit bidirectional transceivers with 3-STATE outputs and separate control for each byte. Designed for bus-oriented applications, these devices feature equivalent series resistance of 25Ω in both high and low states, reducing line noise and eliminating the need for external termination resistors. The LVTH version includes Bushold inputs, preventing floating inputs and reducing external components. Compatible with 5V TTL systems, these devices are fabricated using advanced BICMOS technology for fast switching and low power dissipation, suitable for memory address drivers, clock distributions, and bus transceivers.
ONSEMI 74LVT162245MTD Bus Transceiver Specifications:
- Supply Voltage: 3.3V (Vcc) and 5V compatible
- Input Voltage Range: 0V to 5.5V
- Output Voltage: Vcc to GND (0.5V to 20V), high-speed with propagation delays 10-46 ns
- Power Dissipation: Low power BICMOS technology, standby high impedance
- Port Outputs: Source/sink currents of +12 mA (A Port), -32 mA/+64 mA (B Port)
- Configuration: Non-inverting, bidirectional, separate control for each byte
- Series Resistance: 25Ω to reduce ringing and overshoot
- ESD Tolerance: >2000V human-body model, >1000V charged device model
- Packaging: 54-Ball FBGA, 48-Lead SSOP, TSSOP packages
- Features include live insertion, glitch-free power-up/down, and high impedance Bus during disable.
Buy the ON Semiconductor 74LVT162245 MTD – Reliable Bus Transceiver for Industrial Applications
Enhance your systems with ON Semiconductor 74LVT162245 bus transceiver, featuring low voltage compatibility, high-speed operation, and robust ESD protection. Designed for efficient data transfer in memory, clock, and bus applications, this 16-bit transceiver provides excellent noise reduction with 25Ω series resistance, separate byte control, and Bushold inputs. Its advanced BICMOS technology ensures minimal power usage and fast switching, making it ideal for critical industrial, automotive, and telecommunication systems. Buy online today for reliable performance and seamless integration.
Get ON Semiconductor 74LVT162245 MTD today—built for precise signal transfer and long-lasting durability in your industrial projects.
Frequently Asked Questions
Where can I buy ONSEMI 74LVT162245MTD?
You can click on the BUY or RFQ button to purchase 74LVT162245MTD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LVT162245MTD?
You can download the 74LVT162245MTD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LVT162245MTD?
ONSEMI
