ONSEMI 74LCX244BQX Low Voltage Buffer
The 74LCX244 is an advanced CMOS buffer with 3-STATE outputs designed for low voltage applications (2.3V to 3.6V). It features eight non-inverting buffers, high-speed operation with maximum 6.5ns propagation delay at Vcc = 3.3V, and supports 5V tolerant inputs and outputs. Suitable for memory address driving, clock distribution, and bus-oriented transmitters/receivers, it includes noise/EMI reduction circuitry, high latch-up performance exceeding 500mA, and robust ESD protection (>2000V human body model). Packaged in leadless DQFN, SOP, SSOP, and TSSOP forms, it ensures low power consumption and reliable operation in various digital systems.
ONSEMI 74LCX244BQX Low Voltage Buffer Specifications:
- Supply Voltage: 2.0V to 3.6V (operating), 1.5V to 3.6V (data retention)
- Input Voltage: 0V to 5.5V
- Output Voltage: 0V to 5.5V
- Input Leakage Current: ±45.0 pA
- Output Current: -50mA to +50mA
- Propagation Delay: 1.5 to 6.5 ns (typical)
- ESD Protection: >2000V Human Body Model
- Power Dissipation Capacitance: 25 pF
- Package Types: SOIC, SOP, SSOP, TSSOP, DQFN
- Operating Temperature: -40°C to +85°C
- Max Data Retention Voltage: 3.6V
- Supports live insertion/withdrawal

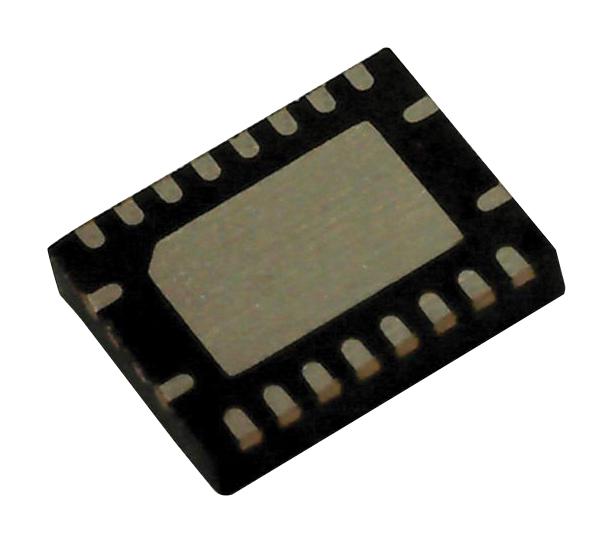

Buy the Buy ON Semiconductor 74LCX244 Part Number 74LCX244BQX Online
Enhance your digital system with the ON Semiconductor 74LCX244 low voltage buffer integrated circuit. Designed for high-speed, low power operation, it features 8 non-inverting buffers with high drive capability and 3-STATE outputs. Compatible with 2.3V to 3.6V operation and supporting 5V tolerant inputs and outputs, it ensures reliable data transmission, noise reduction, and EMI performance. Ideal for memory addressing, clock driving, and bus systems, available in various leadless packages. Purchase online today for quality, efficiency, and versatile digital solutions.
Get ON Semiconductor 74LCX244BQX today—built for precision, fast switching, and long-lasting durability with low power consumption.
Frequently Asked Questions
Where can I buy ONSEMI 74LCX244BQX?
You can click on the BUY or RFQ button to purchase 74LCX244BQX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LCX244BQX?
You can download the 74LCX244BQX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LCX244BQX?
ONSEMI
