ONSEMI NCP148AFCT250T2G Low Noise Linear Regulator
The NCP148 is an ultra-low noise, high PSRR linear regulator capable of delivering 450 mA output current, designed for RF, analog, camera modules, and battery-powered devices. It features low dropout of 150 mV at full load, stable with 1 uF ceramic capacitors, and includes soft-start and active discharge functions. Operating from 1.9 V to 5.5 V, it offers high accuracy (+2%), low quiescent current of 55 μA, and excellent transient response. Its compact CSP package ensures efficient thermal dissipation and reliable operation in space-constrained applications.
ONSEMI NCP148AFCT250T2G Low Noise Linear Regulator Specifications:
- Operating Input Voltage Range: 1.9 V to 5.5 V
- Maximum Output Current: 450 mA
- Dropout Voltage: 150 mV at 450 mA
- Output Voltage Options: 1.8 V to 5.14 V
- Output Voltage Accuracy: ±2%
- Quiescent Current: Typ. 55 μA
- Standby Current: Typ. 0.1 μA
- Power Supply Rejection Ratio: Typ. 98 dB at 20 mA, f = 1 kHz
- Output Noise: 10 μV rms

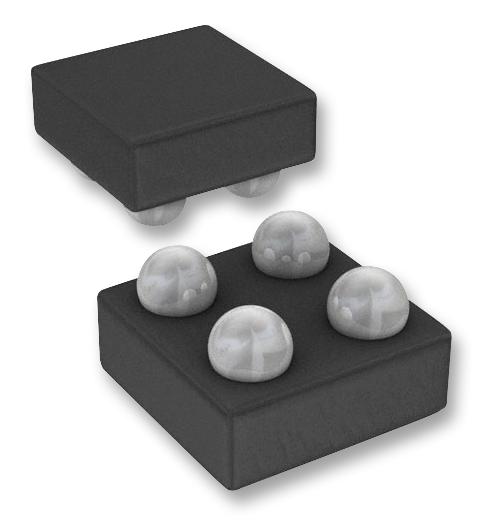

- Package: WLCSP4 0.65 mm x 0.65 mm x 0.33 mm CASE 567JZ
- Thermal Resistance: 108 °C/W Junction-to-Air
- Protection: Overcurrent, short circuit, overtemperature shutdown
- Input Capacitor: 1 μF ceramic, low ESR
- Output Capacitor: 1 μF ceramic, stable over temperature
- Features: Soft-start with slew rate control, active discharge function for quick reset in camera modules
Buy the ON Semiconductor Series NCP148 Low Noise LDO: NCP148AFCT250T2G
Purchase the ON Semiconductor NCP148AFCT250T2G online today—designed for RF, analog, and camera applications. This ultra-low noise, high PSRR LDO offers excellent transient response, low dropout of 150 mV at 450 mA, and includes soft-start and active discharge functionalities. Its compact CSP package saves space while providing reliable thermal dissipation. Ideal for battery-powered devices, smartphones, tablets, camera modules, and high-performance analog circuits, ensuring stability, efficiency, and durability in demanding applications.
Get ON Semiconductor NCP148AFCT250T2G today—built for ultra-low noise performance and high PSRR in compact CSP package.
Frequently Asked Questions
Where can I buy ONSEMI NCP148AFCT250T2G?
You can click on the BUY or RFQ button to purchase NCP148AFCT250T2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP148AFCT250T2G?
You can download the NCP148AFCT250T2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP148AFCT250T2G?
ONSEMI
