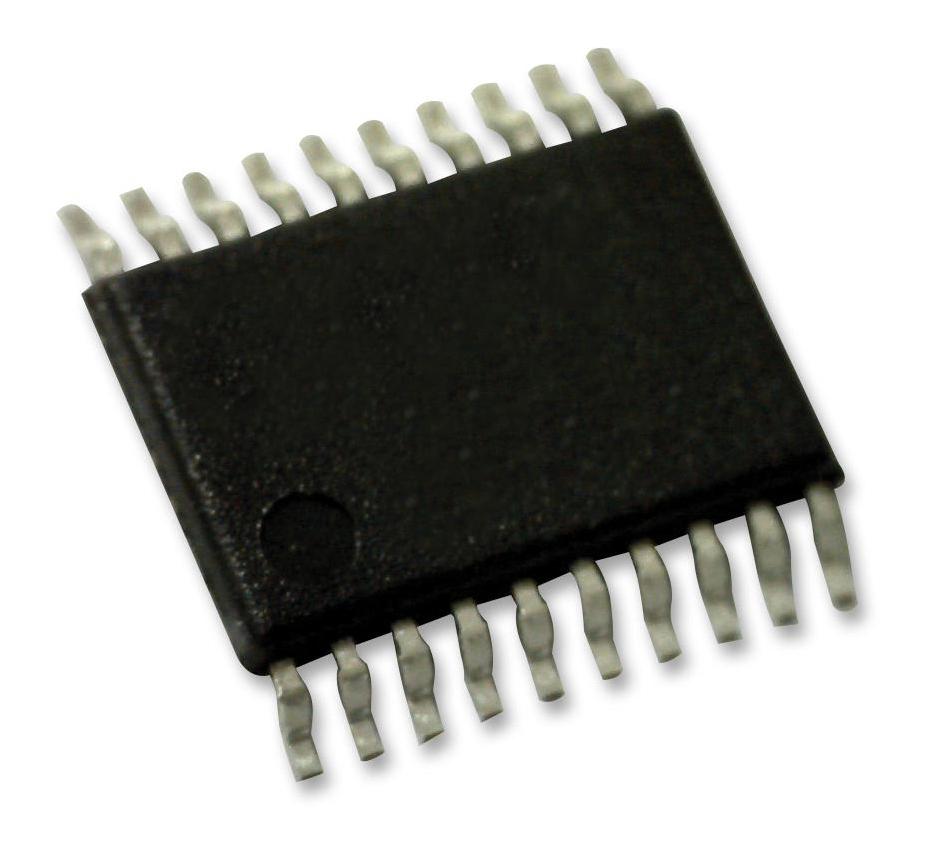

ONSEMI 74LVX541MTCX Octal Buffer/Line Driver
The ONSEMI 74LVX541MTCX is a versatile octal buffer and line driver designed for a wide range of applications. Its low voltage operation and 3-state outputs make it ideal for memory address drivers, clock drivers, and bus-oriented transmitter/receiver circuits. The device's ability to translate input voltage from 5V to 3V allows for seamless integration into mixed-voltage systems. It's a robust solution for low-power, low-noise applications requiring high-speed data transmission.
ONSEMI 74LVX541MTCX Octal Buffer/Line Driver Specifications:
- Supply Voltage (VCC): 2.0V to 7.0V
- DC Input Diode Current (IIK): ±20 mA
- Input Voltage (VI): 0V to 5.5V
- DC Output Diode Current (IOK): ±20 mA
- DC Output Voltage (VO): 0V to VCC - 0.5V
- DC Output Source or Sink Current (IO): ±25 mA
- DC VCC or Ground Current (ICCor IGND): ±75 mA
- Storage Temperature (TSTG): −65°C to 150°C
- Power Dissipation: 180 mW
- HIGH Level Input Voltage: 1.5V to 3.6V
- LOW Level Input Voltage: 0.5V to 3.6V
- HIGH Level Output Voltage: 1.9V to 3.0V
- LOW Level Output Voltage: 0.0V to 0.1V
- 3-STATE Output OFF-State Current: ≤2.5 pA
- Input Leakage Current: ≤1.0 pA
- Quiescent Supply Current: ≤40.0 pA
- Quiet Output Maximum Dynamic VOL: 0.5V
- Quiet Output Minimum Dynamic VOL: −0.8V
- Minimum HIGH Level Dynamic Input Voltage: 2.0V
- Maximum HIGH Level Dynamic Input Voltage: 0.8V
