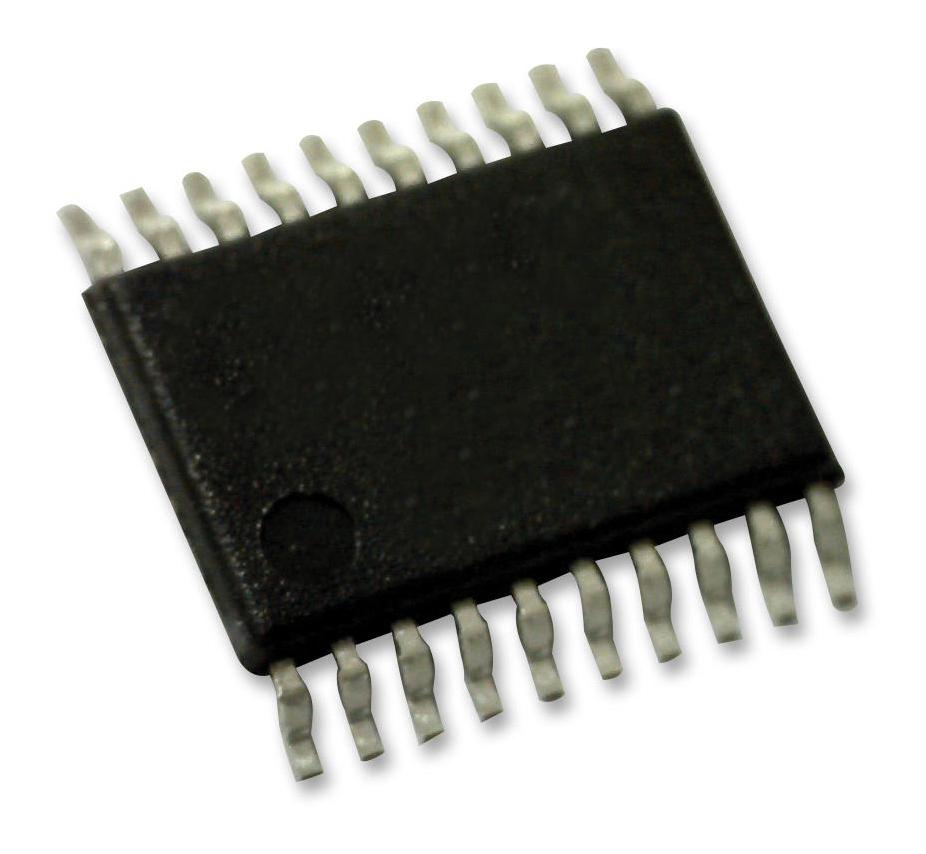

ONSEMI 74VHC273MTCX Octal D-Type Flip-Flop
The ONSEMI 74VHC273 is an advanced high-speed CMOS octal D-type flip-flop fabricated with silicon gate CMOS technology. It offers high-speed operation with low power dissipation, making it suitable for a wide range of digital applications. The device features a common buffered Clock (CP) and provides power down protection on all inputs. It is pin and function compatible with the 74HC273 and can be used in 5V to 3V systems.
ONSEMI 74VHC273MTCX Octal D-Type Flip-Flop Specifications:
- High Speed: fMAX = 165MHz (typ) at VCC = 5V
- Low Power Dissipation: ICC = 4µA (max) at TA = 25°C
- High Noise Immunity: VNIH = VNIL = 28% VCC (min)
- Power Down Protection: Provided on all inputs
- Low Noise: VOLP = 0.9V (max)
- Pin and Function Compatibility: Compatible with 74HC273
- Package: Leadless DQFN Package
- Supply Voltage: 2.0V to +5.5V
- Input Voltage: 0V to +5.5V
- Output Voltage: 0V to VCC
- Operating Temperature: –40°C to +85°C
- Maximum Clock Frequency: Up to 165MHz
- Input Leakage Current: ±0.1µA to ±1.0µA
- Quiescent Supply Current: 4.0µA to 40.0µA
Buy the 74VHC273MTCX ONSEMI Octal D-Type Flip-Flop | myMectronic
Purchase the ONSEMI 74VHC273MTCX securely online and ensure reliable performance in your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74VHC273MTCX?
You can click on the BUY or RFQ button to purchase 74VHC273MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VHC273MTCX?
You can download the 74VHC273MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VHC273MTCX?
ONSEMI
