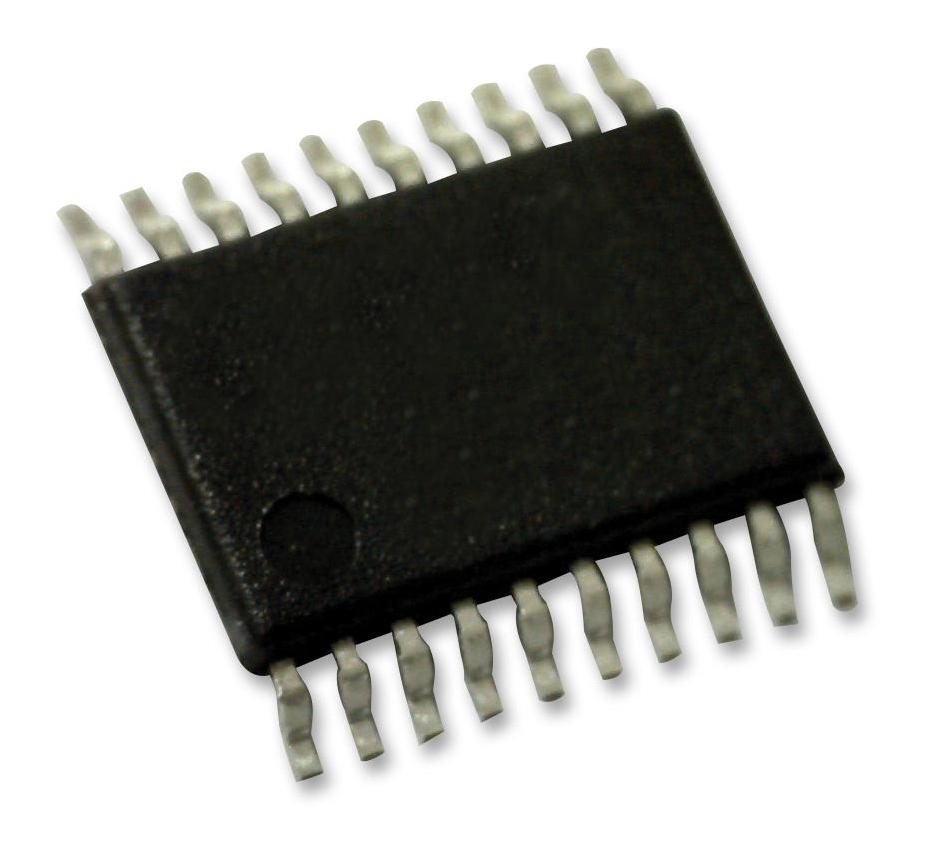

ONSEMI 74VHC574MTCX Octal D-Type Flip-Flop
The ONSEMI 74VHC574MTCX is an advanced high-speed CMOS octal flip-flop designed for a wide range of digital applications. It combines high-speed performance with low power dissipation and robust input protection, allowing for safe operation in various voltage environments. The flip-flop's 3-STATE output capability, controlled by an output enable input, provides flexibility in system design. It is commonly used in data storage, register applications, and other digital circuits requiring reliable data manipulation.
ONSEMI 74VHC574MTCX Octal D-Type Flip-Flop Specifications:
- Absolute Maximum Ratings: Supply Voltage (VCC): -0.5V to 7.0V; DC Input Voltage (VIN): -0.5V to 7.0V; DC Output Voltage (VOUT): -0.5V to VCC - 0.5V; Input Diode Current (IIK): -20 mA; Output Diode Current: -20 mA; DC Output Current (IOUT): -25 mA; DC VCC/GND Current (ICC): -75 mA; Storage Temperature (TSTG): -65°C to 150°C
- Recommended Operating Conditions: Supply Voltage (VCC): 2.0V to 5.5V; Input Voltage (VIN): 0V to 5.5V; Operating Temperature (TOPR): -40°C to 85°C; Input Rise and Fall Time (tr, tf): VCC 3.3V r 0.3V 0 a 100 ns/V, VCC 5.0V r 0.5V 0 a 20 ns/V
- Features: High Speed: tPD 5.6 ns (typ) at VCC 5V; High Noise Immunity: VNIH VNIL 28% VCC (Min); Power Down Protection; Low Noise: VOLP 0.6V (typ); Low Power Dissipation: ICC 4 PA (Max) @ TA 25°C; Pin and Function Compatible with 74HC574
Buy the 74VHC574MTCX ONSEMI Octal D-Type Flip-Flop | myMectronic
Purchase the ONSEMI 74VHC574MTCX securely and reliably for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74VHC574MTCX?
You can click on the BUY or RFQ button to purchase 74VHC574MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VHC574MTCX?
You can download the 74VHC574MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VHC574MTCX?
ONSEMI
