ONSEMI FGA60N65SMD High-Current Power IGBT
Fairchild's FGA60N65SMD is a 650 V, 60 A field stop IGBT designed using advanced technology for high current capability, low conduction, and switching losses. It features tight parameter distribution, positive temperature coefficient for easy parallel operation, high junction temperature of 175°C, and RoHS compliance, making it ideal for solar inverters, UPS, welders, PFC, telecom, and energy storage systems. The device provides fast switching, low saturation voltage, and robust thermal characteristics suitable for demanding power applications.
ONSEMI FGA60N65SMD High-Current Power IGBT Specifications:
- Collector to Emitter Voltage: 650 V
- Collector Current: 60 A
- Pulsed Collector Current: 180 A
- Gate to Emitter Voltage: +20 V
- Maximum Junction Temperature: 175°C
- Thermal Resistance, Junction to Case: 0.25 °C/W
- Thermal Resistance, Junction to Ambient: 40 °C/W
- Maximum Power Dissipation @ 25°C: 600 W
- Maximum Power Dissipation @ 100°C: 300 W
- Switching Delay Time: 18-27 ns
- Rise Time: 47-70 ns
- Fall Time: 39-68 ns
- Gate Charge: 189-284 nc
- Diode Forward Voltage: 1.7-2.6 V
- Operation Temperature Range: -55°C to +175°C
- RoHS Compliant

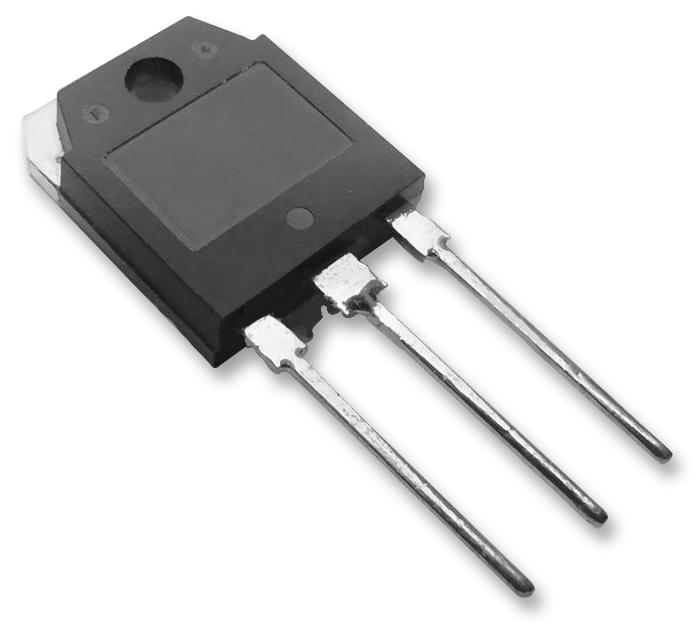

Buy the Fairchild Series FGA Generation IGBT: 650V 60A high-current switch
Purchase the Fairchild FGA60N65SMD online today and enhance your power conversion systems with this high-current, low-loss IGBT. Designed for solar inverters, UPS, welders, and telecom equipment, this device offers fast switching, low saturation voltage, and thermal stability up to 175°C. Its robust construction ensures long-term performance in demanding environments. Available for quick delivery, this premium power switch is ideal for engineers seeking efficiency, reliability, and compliance with RoHS standards. Get yours now and power your projects with confidence.
Buy Fairchild FGA60N65SMD now and experience unmatched reliability and performance in high-power switching applications.
Frequently Asked Questions
Where can I buy ONSEMI FGA60N65SMD?
You can click on the BUY or RFQ button to purchase FGA60N65SMD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FGA60N65SMD?
You can download the FGA60N65SMD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FGA60N65SMD?
ONSEMI
