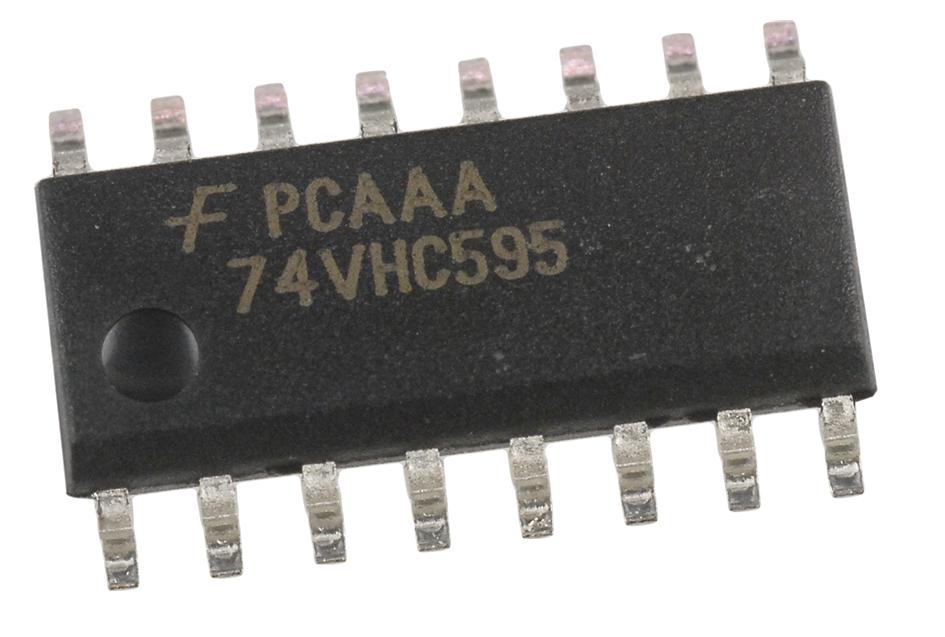

ONSEMI 74VHC595M Datasheet & Stock
The 74VHC595M is an 8-bit high-speed CMOS shift register with output latches, fabricated using silicon gate CMOS technology. It offers fast operation comparable to bipolar Schottky TTL while maintaining low power consumption. This device features an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register with eight 3-state outputs. Separate clock inputs are provided for both registers, configured as positive-edge triggered. When both clocks are connected, the shift register's state leads the storage register by one clock cycle. Additionally, the device includes an input protection circuit allowing voltages from 0 to 7V regardless of supply voltage, along with power-down protection on all inputs, high noise immunity, and low power dissipation. It is pin and function compatible with the 74HC595. Suitable applications include industrial environments.
Frequently Asked Questions
Where can I buy ONSEMI 74VHC595M?
You can click on the BUY or RFQ button to purchase 74VHC595M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VHC595M?
You can download the 74VHC595M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VHC595M?
ONSEMI
