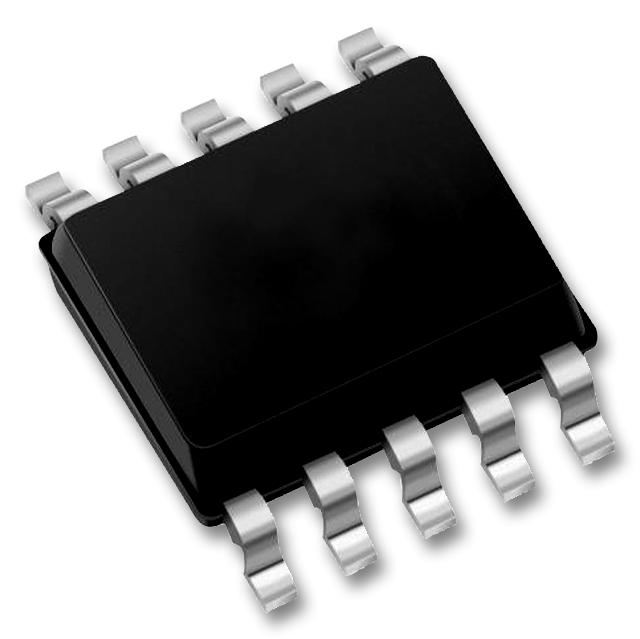

ONSEMI FL5160MX AC Dimmer Controller
The FL5160 is a highly versatile AC line dimmer controller designed for 120 Vac 60 Hz applications, utilizing IGBT or MOSFET transistors for precise pulse width modulation. It features selectable leading or trailing edge dimming modes, dynamic over-current and temperature protection, high-accuracy internal timing, and extremely low power consumption in the off state. Suitable for controlling LED loads, incandescent lighting, and AC loads, the device ensures flicker-free operation while complying with UL1472 standards, and is packaged in a space-saving SOIC 10-pin package for easy integration into compact electronic controls.
ONSEMI FL5160MX AC Dimmer Controller Specifications:
- Supply Current: 600 mA max
- Supply Voltage: VS to GND -0.8 V to 20 V
- Power Supply Voltage: VS to GND 16 V to 18 V typical
- OC Sense Voltage: Sense1 and Sense2 clamp high at 4 V, clamp low at -0.7 V
- Quiescent Current: 600 nA at 25°C
- Control Voltage Range (DIM Control): 0 to 10 V DC, ADC reference 2.56 V
- Gate Drive (DRV Gate): 16 to 250 ns rise time, 50 to 100 ns fall time
- DIM Mode: Selects trailing or leading edge dimming; latched at startup
- Zero Crossing Detection: Utilizes ZC monitor pin for precise phase control
- Over-Current Threshold: Programmable, dynamic based on phase angle
- Input Voltage: 120 Vac or 230 Vac, with corresponding internal oscillator frequency
- Operating Temperature Range: -40°C to +85°C
- Package: SOIC 10-pin, space-efficient and suitable for surface mounting
Buy the Fairchild Series FL5150/60 AC Dimmer Controller: FL5160MX
Purchase the Fairchild Series FL5160MX AC dimmer controller online today and upgrade your lighting controls. This sophisticated device offers seamless dimming for LED and incandescent loads with high precision and low power consumption. Its selectable trailing or leading edge dimming modes, along with dynamic over-current and temperature protections, ensure safe and flicker-free operation. Compact and easy to integrate in space-conscious designs, the FL5160MX guarantees improved lighting quality and energy efficiency for residential, commercial, or industrial applications. Get yours now for dependable performance and effortless installation.
Order your Fairchild Series FL5160MX AC line dimmer controller today and enhance your lighting projects with reliable, flicker-free dimming performance.
Frequently Asked Questions
Where can I buy ONSEMI FL5160MX?
You can click on the BUY or RFQ button to purchase FL5160MX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FL5160MX?
You can download the FL5160MX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FL5160MX?
ONSEMI
