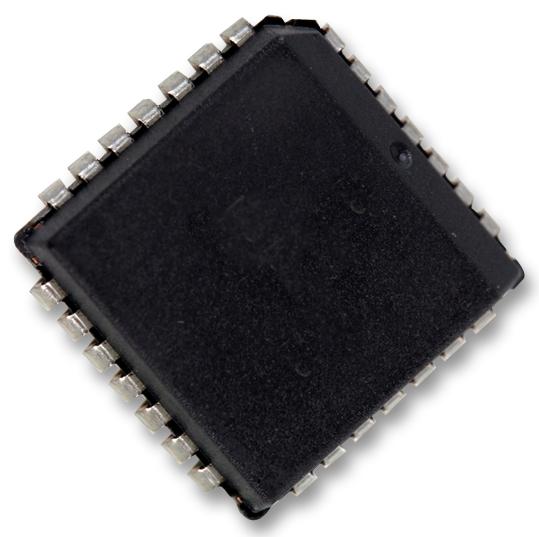

ONSEMI A5191HRTPGXTD HART Modem
The A5191HRT is a highly integrated, single-chip CMOS modem designed for use in highway addressable remote transducer (HART) field instruments and master systems. It supports half-duplex 1200 bits per second FSK modulation using 1200 Hz and 2200 Hz shift frequencies, ensuring reliable digital communication over industrial 4-20 mA loops. The device provides modulation, demodulation, receive filtering, carrier detection, and signal shaping with low power consumption, making it ideal for intrinsically safe applications within an industrial temperature range of -40°C to +85°C. Available in multiple packages, it integrates external crystal or ceramic resonator operation for stable timing.
ONSEMI A5191HRTPGXTD HART Modem Specifications:
- Supports half-duplex 1200 bits/sec FSK modulation at 1200 Hz and 2200 Hz
- Power Supply Voltage: 3.0V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- External clock: 460.8 kHz crystal or ceramic resonator
- Package Options: PLCC-28, QFN-32, LQFP-32
- Carrier detect signal threshold: approximately 100 mVp-p
- Receive filter: band-pass with high-pass filtering
- Analog inputs: RxA, RxAFI; Digital outputs: RxD, CD
- Supported communication baud rate: 1200 baud
- Low power consumption optimized for safety applications
- Equivalent to industry-standard HART physical layer components
- Pin counts: 28, 32 in various packages, with Pb-free options
Buy the HART Modem Series A5191HRT: A5191HRTPGXTD
Order the ON Semiconductor A5191HRTPGXTD HART modem online today and ensure seamless industrial communication. This single-chip solution supports 1200 baud FSK modulation, low power operation, and a wide temperature range from -40°C to +85°C. Available in various packages including PLCC, QFN, and LQFP, it features internal or external crystal operation for stable timing. Ideal for remote transducers, multiplexers, and loop-powered transmitters, purchase now for trusted performance in demanding industrial environments.
Buy ON Semiconductor A5191HRTPGXTD now and experience reliable HART communication with low power consumption for industrial automation.
Frequently Asked Questions
Where can I buy ONSEMI A5191HRTPGXTD?
You can click on the BUY or RFQ button to purchase A5191HRTPGXTD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part A5191HRTPGXTD?
You can download the A5191HRTPGXTD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of A5191HRTPGXTD?
ONSEMI
