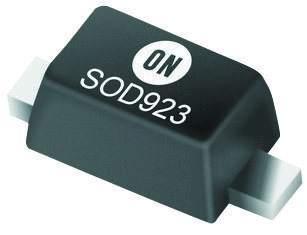

ONSEMI NZ9F3V3ST5G Surface-mount Zener diode
The NZ9F3V3ST5G is a compact, surface-mount Zener diode providing reliable voltage regulation with a breakdown voltage of 3.3V. Designed for high-density circuits such as mobile phones and portable devices, it features a small body size of 1.00 mm x 0.60 mm, low body height of 0.40 mm, and a power dissipation of 250 mW. It meets UL 94 V-0 flammability standards, has a maximum Zener impedance of 35 Ω at 5 mA, and offers excellent ESD resistance over 16 kV, making it ideal for space-constrained applications demanding stability and durability.
ONSEMI NZ9F3V3ST5G Surface-mount Zener diode Specifications:
- Zener Breakdown Voltage Range: 2.4 V to 18 V
- Power Dissipation: 250 mW
- Body Dimensions: 1.00 mm x 0.60 mm
- Body Height: 0.40 mm
- ESD Rating: Class 3 (>16 kV) Human Body Model
- Reflow Max Temperature: 260°C
- Lead Finish: Matte Sn (Tin)
- Package: SOD-923, Voided-free, Transfer-molded plastic, UL 94V-0
- Operating Temperature Range: -65°C to +150°C
- Maximum Zener Impedance: 35 Ω at 5 mA
- Maximum Reverse Voltage: 3.3V (customized for different voltages)
Buy the Buy ON Semiconductor NZ9F3V3ST5G Part Number NZ9F3V3ST5G Online
Order the ON Semiconductor NZ9F3V3ST5G Zener diode online today to ensure your electronic projects benefit from stable voltage regulation, compact design, and robust ESD protection. Perfect for high-density PCBs, mobile phones, and portable devices, this SOD-923 package provides reliable performance with a power rating of 250 mW. Featuring low body height and excellent electrical characteristics, it supports demanding environments and tight spaces while maintaining consistent voltage regulation and durability for your critical electronic systems.
Buy ON Semiconductor NZ9F3V3ST5G now and benefit from a compact, high-reliability Zener diode with excellent ESD resistance for space-sensitive applications.
Frequently Asked Questions
Where can I buy ONSEMI NZ9F3V3ST5G?
You can click on the BUY or RFQ button to purchase NZ9F3V3ST5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NZ9F3V3ST5G?
You can download the NZ9F3V3ST5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NZ9F3V3ST5G?
ONSEMI
