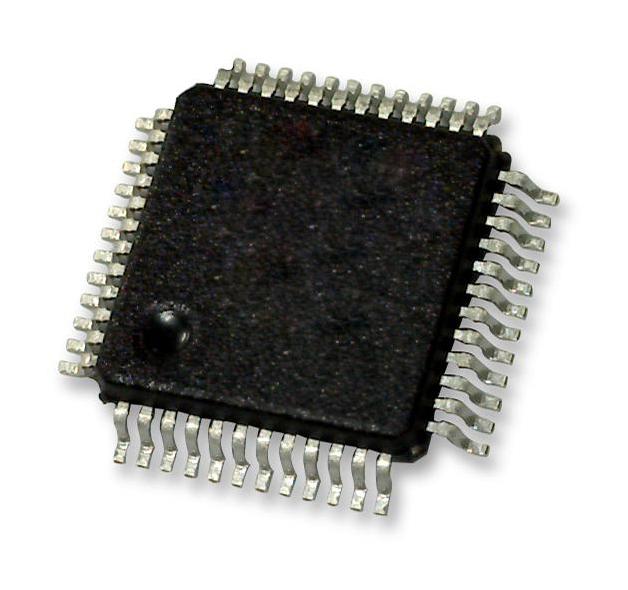

ONSEMI ADM1026JSTZREEL System Hardware Monitor
The ADM1026 is a comprehensive system hardware monitor for microprocessor-based systems offering measurement and limit comparison of voltages, temperatures, and fan speeds. It features 17 external analog measurement pins, remote temperature sensors, internal temperature sensor, and programmable limit registers for voltages and temperatures. The device communicates via SMBus, supports fan speed measurement and control through DAC and PWM outputs, and includes interrupt and chassis intrusion detection for system safety. Its programmability and extensive monitoring capabilities make it ideal for servers, PCs, and telecom equipment, ensuring reliable system health management.
ONSEMI ADM1026JSTZREEL System Hardware Monitor Specifications:
- Analog measurement channels: up to 19 including internal sensors
- Fan speed measurement channels: up to 8 with divisor controls
- Voltage inputs monitored: +3.3 V, +5 V, +12 V, -12 V, core voltage
- Remote temperature sensing via diode inputs on pins 25-28
- On-chip temperature sensor with -128°C to +127°C range
- SMBus 2-wire serial interface supporting SMBus 1.1; PEC included
- EEPROM memory: 8 kB with endurance of 100,000 cycles, data retention of 10 years
- Programmable limits for voltages and temperatures with dedicated registers
- Programmable fan speed control via DAC (0-2.5 V) and PWM outputs
- Interrupts generated for voltage, temperature limits, fan states, chassis intrusion
- Grounded digital logic I/O pins with configuration and polarity controls
- Power supply: 3.3 V, with active reset and low power modes
- Package: 48-lead LOFP, size 7x7 mm, Pb-Free
Buy the ON Semiconductor ADM1026 – Reliable System Monitoring for Industrial Applications
Purchase the ON Semiconductor ADM1026 online today and enhance your system's reliability with comprehensive voltage, temperature, and fan speed monitoring. Its programmable limit registers, SMBus communication, and multiple diagnostic features support optimal system health management in servers, PCs, and telecom equipment. Designed for industrial applications, this device ensures your system operates within safe parameters, providing long-lasting durability, accurate measurements, and quick response to system faults. Order now to secure a high-quality component for critical system management.
Get ON Semiconductor ADM1026 today—built for precise voltage, temperature, and fan speed monitoring in industrial systems.
