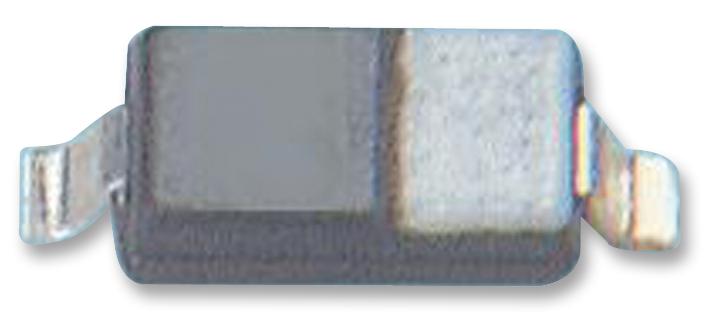

ONSEMI S1GHE Surface Mount Rectifier
High-efficiency, surface mount rectifiers with low profile package and moisture sensitivity level 1, suitable for industrial power supply applications. Featuring glass passivated chip junction, UL 94V-0 flammability rating, and RoHS compliance, these devices operate within a wide junction temperature range up to +175°C. They deliver maximum repetitive peak reverse voltages of 400V and 600V respectively, with a forward current of 1A. Designed for reliable performance in demanding environments, these rectifiers meet AEC-Q101 standards and offer high surge current handling capabilities with low forward voltage.
ONSEMI S1GHE Surface Mount Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 400V (S1GHE), 600V (S1JHE)
- Maximum Average Forward Rectified Current: 1A
- Peak Forward Surge Current: 20A
- Operating Junction Temperature Range: -55°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction to Lead: 26.5 °C/W
- Junction to Ambient Thermal Resistance: 200 °C/W
- Forward Voltage: 0.96V (at 1A, 25°C)
- Reverse Current: 0.02A (at 25°C)
- Reverse Recovery Time: 782 ns
- Junction Capacitance: 3 pF
- Package Type: SOD-323HE
- Packaging: Tape and Reel
- Flammability Rating: UL 94V-0
- RoHS Compliant
Buy the ON Semiconductor S1GHE – Reliable Rectifiers for Industrial Applications
Purchase the ON Semiconductor S1GHE rectifier today for highly reliable, high-voltage power rectification in industrial systems. Featuring a compact, low-profile SOD-323HE package, these rectifiers offer peak repetitive voltages up to 400V or 600V with a maximum forward current of 1A. They are RoHS compliant, moisture-sensitive level 1, and glass passivated for durability. Ideal for power supplies, automation, and industrial power circuits, these devices ensure efficient and safe operation in demanding environments. Buy online now for quick delivery and best prices.
Order your ON Semiconductor S1GHE rectifiers today and ensure robust performance for your industrial power supply projects.
Frequently Asked Questions
Where can I buy ONSEMI S1GHE?
You can click on the BUY or RFQ button to purchase S1GHE from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part S1GHE?
You can download the S1GHE datasheet or visit the ONSEMI website for support.
Who is the manufacturer of S1GHE?
ONSEMI
