ONSEMI FSFR2100 Power Switch Module
The FSFR2100 is a highly integrated power switch designed for high-efficiency half-bridge resonant converters. It combines power MOSFETs with fast-recovery diodes, high-side gate drive, and comprehensive protection functions, enabling reliable, high-performance designs. Featuring zero-voltage switching (ZVS), adjustable frequency, and built-in soft-start, it reduces switching losses and electromagnetic interference, making it ideal for applications like LCD TVs, PCs, adapters, and telecom power supplies. Its robust features ensure system longevity and excellent noise immunity in demanding environments.
ONSEMI FSFR2100 Power Switch Module Specifications:
- Body Diode: Fast Recovery Type, Body Diode Reverse Recovery Time: 120 ns
- Maximum Drain-to-Source Voltage: 600 V
- On-State Resistance: 0.38 Ω (Vgs=10 V, Ip=5.5 A)
- Maximum Junction Temperature: +150°C
- Recommended Operating Junction Temperature: -40°C to +130°C
- Total Power Dissipation: 12 W
- Switching Frequency Range: Up to 300 kHz
- Dead Time: Fixed at 350 ns, adjustable via external circuit
- Control Pin Threshold Voltages: Enable at 0.60 V, Disable at 0.40 V
- Protection Functions: Over-Voltage, Over-Current, Thermal Shutdown, Latch and Auto-Recovery Modes
- Packaging: SIP Module with 9 leads, dimensions approximately 3.2 x 10.5 x 26 mm

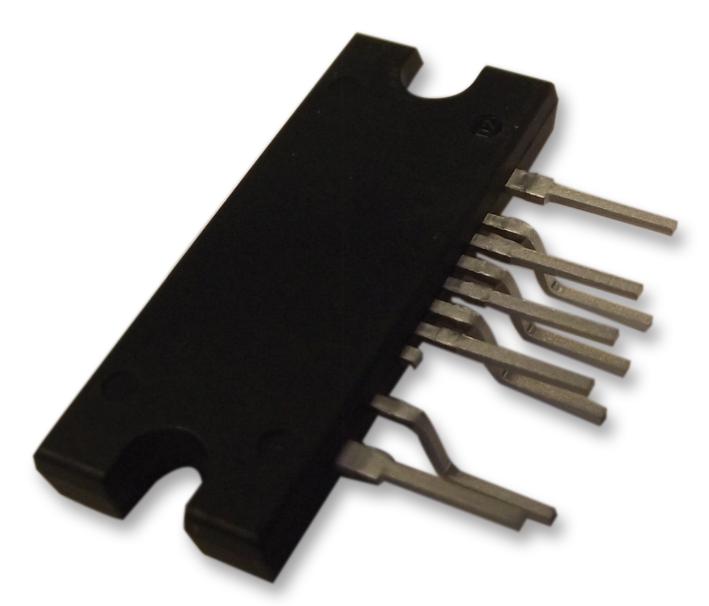

Buy the Fairchild FSFR2100 U– Reliable Power Switch for Industrial Applications
Purchase the Fairchild FSFR2100 online today—designed for high-efficiency half-bridge resonant converters. This versatile power switch integrates robust protection features, fast-recovery diodes, and zero-voltage switching to optimize performance and reliability. Suitable for LCD TVs, PCs, adapters, and telecom power supplies, it ensures excellent noise immunity and reduced electromagnetic interference. Its compact SIP package offers easy integration into demanding systems, providing dependable operation with a wide temperature range, high power handling, and simplified design. Buy now for superior power management and system stability.
Get Fairchild FSFR2100 today—built for precision and long-lasting durability in high-efficiency resonant converters.
Frequently Asked Questions
Where can I buy ONSEMI FSFR2100?
You can click on the BUY or RFQ button to purchase FSFR2100 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FSFR2100?
You can download the FSFR2100 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FSFR2100?
ONSEMI
