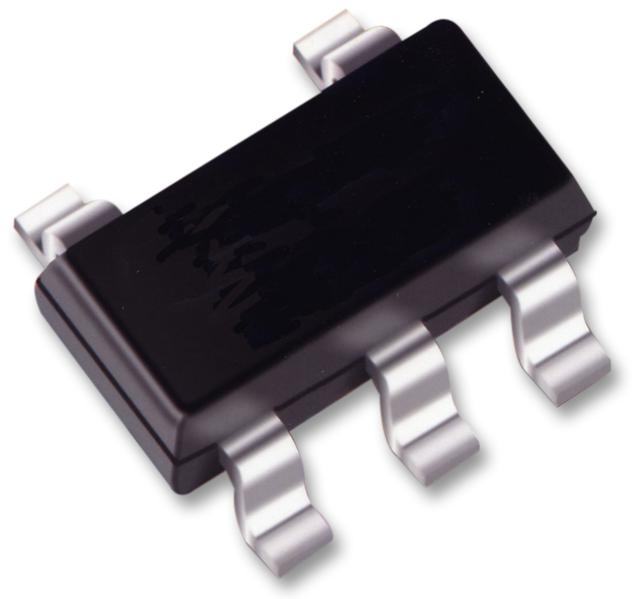

ONSEMI M74VHC1G132DTT1G CMOS Schmitt NAND gate
The MC74VHC1G132 is a high-speed, low-power CMOS Schmitt NAND gate designed for digital logic applications. It features power-down protection, balanced propagation delays, and compatibility with standard logic families. The device is suitable for interfacing different voltage levels, noise immunity enhancement, and wave shaping. Constructed with silicon gate technology, it operates efficiently within a broad temperature range and is RoHS compliant, making it ideal for industrial, automotive, and consumer electronic systems requiring reliable logic performance.
ONSEMI M74VHC1G132DTT1G CMOS Schmitt NAND gate Specifications:
- Supply Voltage Range: 2.0 V to 5.5 V
- Max Power Dissipation: 150 mW at 85°C
- Input Voltage Range: 0.0 V to 5.5 V
- Output Voltage: 0.0 V to Vcc
- High-Level Output Voltage: typically 2.4 V at Iout = -50μA
- Low-Level Output Voltage: typically 0.4 V at Iout = 8 mA
- Propagation Delay: tPLH and tPHL approximately 3.6 ns at Vcc = 5 V
- Temperature Range: -55°C to +125°C
- Input Protection: up to 7 V regardless of Vcc
- ESD Tolerance: >2000 V Human Body Model
- Package Types: SC-88A (SOT-353), TSOP-5 (SOT-23)
- RoHS and Pb-Free Compliant
- Total Gate Count: 16
- Device Type: Schmitt-trigger NAND gate with three stages
