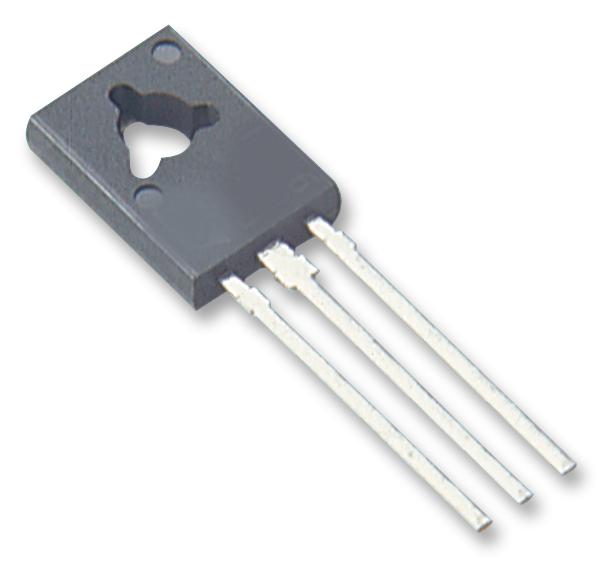

ONSEMI BD13816STU PNP Transistor
The BD13816STU is a PNP epitaxial silicon transistor designed for medium power linear and switching applications. As a complementary bipolar transistor to the BD137 NPN, it operates efficiently within a temperature range of -55°C to 150°C. Suitable for power management, industrial control, and switching circuits, this device features collector-to-emitter voltage ratings of -80 V and -60 V depending on specific models, collector current of 1.5 A (DC) with pulse capacity of -3.0 A, and a junction temperature of 150°C. Its compact TO-126 package ensures reliable performance in demanding environments.
ONSEMI BD13816STU PNP Transistor Specifications:
- Collector-Base Voltage: -60 V (BD138), -80 V (BD140)
- Collector-Emitter Voltage: -60 V (BD138), -80 V (BD140)
- Emitter-Base Voltage: 5 V
- Collector Current (DC): 1.5 A
- Pulse Collector Current: -3.0 A
- Power Dissipation at 25°C: 1.25 W
- Junction Temperature: 150°C
- Storage Temperature Range: -55°C to +150°C
- DC Current Gain: 25 to 250 depending on conditions
- Collector-Emitter Saturation Voltage: -0.5 V at 500 mA collector current
- Package: TO-126.
Buy the ON Semiconductor BD13816STU – Reliable PNP Transistor for Industrial Applications
Purchase the ON Semiconductor BD13816STU PNP transistor online for your industrial or power management projects. Engineered for high reliability and efficiency, this medium power transistor operates within a temperature range of -55°C to 150°C. Its collector-to-emitter voltage ratings of -80 V and -60 V, combined with a collector current of 1.5 A and pulse capacity of -3.0 A, make it ideal for switching and linear applications. Secure prompt delivery and high-quality verified parts directly from authorized distributors online.
Get ON Semiconductor BD13816STU today—built for precision and long-lasting durability in power management and switching circuits.
Frequently Asked Questions
Where can I buy ONSEMI BD13816STU?
You can click on the BUY or RFQ button to purchase BD13816STU from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BD13816STU?
You can download the BD13816STU datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BD13816STU?
ONSEMI
