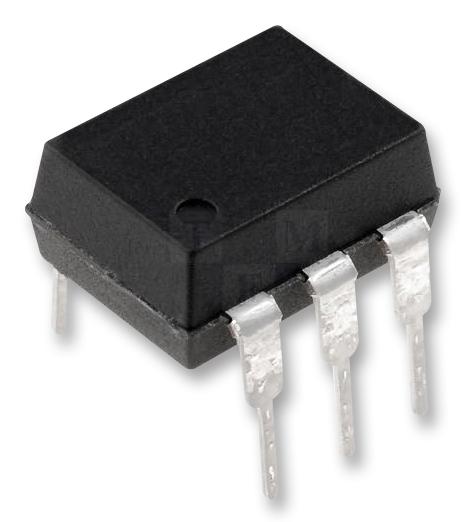

ONSEMI H11G1M High-Voltage Photocoupler
The H11G1M is a high-voltage 6-pin photodarlington optocoupler featuring a gallium arsenide infrared-emitting diode paired with a silicon Darlington phototransistor with an integral base-emitter resistor. It offers a high minimum BVceo of 100 V, low leakage current of up to 100 µA at 80°C, and an insulation voltage of 850 V peak. Ideal for CMOS logic, power supply isolation, and telecommunication applications, this device excels in reliable signal isolation and interface solutions. Designed with robust safety and regulatory approvals, it supports stable performance in various electronic systems, ensuring safe electrical insulation within specified limits.
ONSEMI H11G1M High-Voltage Photocoupler Specifications:
- Number of Pins: 6
- Package Type: DIP
- Maximum Working Insulation Voltage: 850 V peak
- Collector-Emitter Voltage: H11G1M 100 V, H11G2M 80 V
- Input Current: 350 mA
- Forward Voltage: 1.3-1.5 V at 10 mA
- Leakage Current: Max. 100 pA at 80°C
- Isolation Voltage: 4170 VAC rms for 1 minute
- Temperature Range: -40°C to +100°C operating, -40°C to +125°C storage
- Maximum Total Device Power Dissipation: 290 mW at 25°C
- Derate Above 25°C: 3.5 mW/°C
- Soldering Temperature: Up to 260°C for 10 seconds
- Safety Approvals: UL1577, DIN-EN/IEC60747-5-5
- Insulation Resistance: >10^17 Ω at 500 VDC
- Creepage and Clearance: 27 mm
- Switching Time: Turn-on ~5 μs, Turn-off ~100 μs
Buy the Fairchild Series High-Voltage Photodarlington Optocoupler: H11G1M
Order the Fairchild H11G1M high-voltage optocoupler online today and enhance your systems with reliable electrical isolation. Perfect for CMOS logic interfaces, power supply, and telecommunication equipment, this device offers excellent safety ratings, low leakage current, and robust high-voltage insulation. Its compact DIP package ensures easy integration into your electronic designs. Take advantage of fast delivery and competitive pricing to ensure your projects stay on track. Trust the H11G1M for applications demanding high insulation voltage, safety, and dependable performance.
Buy Fairchild H11G1M now and experience unmatched reliability and performance in signal isolation and power management applications.
