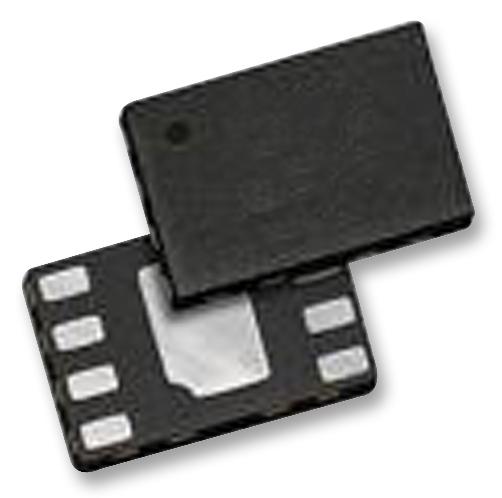

ONSEMI CAT3200HU2GT3 Charge Pump Boost Converter
The CAT3200HU2 is a compact, low noise, high-frequency charge pump DC-DC converter supporting up to 100 mA load current, suitable for battery-powered and portable devices. It features a 2 MHz switching frequency, regulated 5 V fixed or adjustable output, and excellent protection including foldback current limiting, thermal shutdown, and reverse leakage protection. Its small 8-pad UDFN package (2mm x 2mm) enables space-saving designs. Ideal for boost applications from 3 V to 5 V, white LED drivers, and portable electronics requiring efficient power conversion with low quiescent current and fast start-up.
ONSEMI CAT3200HU2GT3 Charge Pump Boost Converter Specifications:
- Switching Frequency: 2 MHz
- Output Current: 100 mA
- Output Voltage: 5 V fixed or adjustable via external resistor divider
- Input Voltage Range: 3 V to 5 V (for 5 V output), 2.2 V to 3.0 V (for 3.3 V adjustable output)
- Quiescent Current: 1.7 mA typical
- Shutdown Current: less than 1 uA
- Operating Temperature Range: -40°C to 85°C
- Package: UDFN-8, 2 mm x 2 mm
- Protection: Foldback current limit, thermal shutdown, reverse leakage
- Capacitors: 1 uF ceramic recommended for input, output, and flying capacitor
- Efficiency: up to 85% at 50mA load
- Output Ripple Voltage: 25 to 45 mVp-p depending on output capacitor ESR
- Start-up Time: less than 0.5 ms
- Reverse Leakage Current: 15 to 30 uA in shutdown mode
Buy the ON Semiconductor CAT3200HU2 – Reliable Boost Converter for Portable Devices
Order the ON Semiconductor CAT3200HU2 charge pump boost converter online today to ensure a space-saving, efficient power supply solution. With a compact 2x2mm UDFN package, it offers a regulated 5V output supporting up to 100 mA load current, ideal for battery-powered and portable devices. Its high-frequency operation (2 MHz) ensures low noise and fast startup times. Features include foldback current limiting, thermal shutdown, reverse leakage protection, and low quiescent current, making it a reliable choice for essential boost conversion needs.
Buy ON Semiconductor CAT3200HU2 now and experience unmatched efficiency and protection features for your portable power applications.
Frequently Asked Questions
Where can I buy ONSEMI CAT3200HU2GT3?
You can click on the BUY or RFQ button to purchase CAT3200HU2GT3 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CAT3200HU2GT3?
You can download the CAT3200HU2GT3 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CAT3200HU2GT3?
ONSEMI
