ONSEMI CM1213A04SO ESD Protection Array
The CM1213A-04SO is a four-channel ESD protection array designed for high-speed digital interfaces such as USB 2.0, HDMI, DVI, and Serial ATA. It offers minimal capacitive loading, with channel input capacitance of 20 pF at 1 MHz, and protects against ESD pulses up to 8kV per IEC 61000-4-2 Level 4 standard. The device includes integrated Zener diodes for supply rail protection, operates within -40°C to +85°C, and features low leakage current of 0.1 μA. Suitable for portable and high-speed electronic systems, it enhances circuit reliability with a compact, Pb-Free SC-74 package.
ONSEMI CM1213A04SO ESD Protection Array Specifications:
- Number of channels: 4
- ESD protection up to 8 kV per IEC 61000-4-2 Level 4
- Channel input capacitance: 20 pF at 1 MHz
- Input capacitance variation with voltage: 0.02 pF typical
- Input capacitance variation with temperature: 1.85V DC bias
- Operating temperature range: -40°C to +85°C
- Supply voltage difference: 6.0 V maximum
- Leakage current: 0.1 μA at 25°C
- Peak discharge voltage: 48 kV
- Clamp voltage: +99 V positive, 16 V negative
- Package: SC-74, Pb-Free RoHS compliant
- Maximum power: 225 mW
- Typical low capacitance: 0.85 pF per channel
- Designed for high-speed digital ports: USB 2.0, HDMI, DVI, SATA
- Includes integrated Zener diodes for Vp and Vy rails
- Connection: 6-pin, leaded SC-74 package with footprint of approximately 0.095 inches
- Supports over 1000 ESD strikes per I/O pin
- Designed for PCB layouts minimizing parasitic inductance

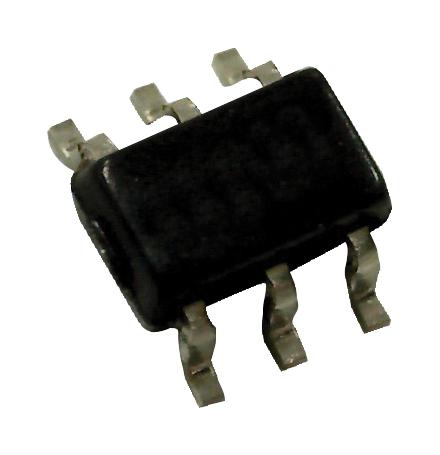

Buy the Buy ON Semiconductor ESD Protection Array Part Number CM1213A-04SO Online
Secure your high-speed device interfaces with the ON Semiconductor CM1213A-04SO ESD protection array. This four-channel device provides up to 8kV ESD protection, features ultra-low capacitance for minimal signal distortion, and is ideal for USB, HDMI, DVI, and SATA ports. The compact Pb-Free SC-74 package simplifies PCB layout, while integrated Zener diodes protect supply rails. Designed for high-speed digital systems from portable devices to advanced digital TVs, enhancing circuit resilience and performance with reliable ESD shielding in a small form factor.
Order your ON Semiconductor SeriesCM1213A-04SO ESD Protection Array today and ensure reliable protection for your high-speed digital interfaces in compact systems.
