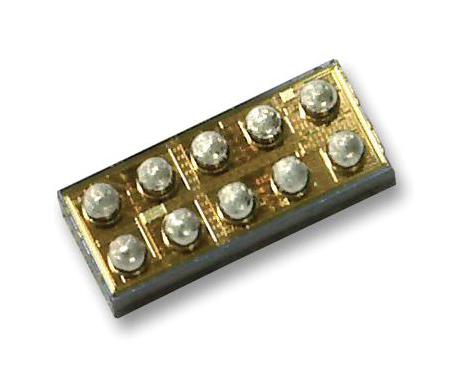

ONSEMI CM123008CP ESD Protection Array
The CM1230 family offers 2, 4, and 8 channel low-capacitance ESD protection diode arrays in a CSP form factor. Designed for high data rate systems and circuits with minimal capacitive loading, each channel features clamp diodes directing ESD pulses to supply rails. Meets IEC61000-4-2 Level 4 with 8 kV ESD protection and over +15 kV air discharge resistance. Ideal for wireless handsets, LCDs, and camera interfaces, it improves reliability with OptiGuard™ coating in a space-efficient package, ensuring robust, high-speed electrostatic discharge protection.
ONSEMI CM123008CP ESD Protection Array Specifications:
- Channel count options: 2, 4, 8
- ESD protection level: IEC61000-4-2 Level 4, 8 kV contact, +15 kV air discharge
- Peak discharge voltage: +15 kV human body model, >15 kV contact discharge
- Capacitance: Typical input channel capacitance 0.8 pF, matching within 0.02 pF
- Supply voltage: Vp - Vv up to 6.0 V, operating temperature -40°C to +85°C
- Device packaging: CSP-4, CSP-6, CSP-10 with low profile and space-efficient form factor
- Reinforced reliability with OptiGuard™ coating, lead-free and RoHS compliant
- Maximum pulse: withstands >1000 ESD strikes per pin
- Soldering: Compatible with lead-free reflow, max temperature 260°C
- Dimensions: CSP packages vary (4, 6, 10 bumps), detailed dimensions available
Buy the ON Semiconductor CM1230 – Reliable ESD Protection Arrays for Industrial Applications
Enhance your circuit resilience with the high-performance ON Semiconductor CM1230 series. Available in space-saving CSP packages, these low-capacitance ESD protection arrays safeguard high-speed interfaces in mobile devices, LCDs, and cameras. Featuring IEC Level 4 compliance, over +15 kV air discharge, and OptiGuard™ coating, they deliver reliable performance in a compact form factor. Order online today and secure dependable, robust electrostatic protection for your electronics projects, ensuring optimal functionality and longevity under harsh electrostatic conditions.
Order your ON Semiconductor CM1230 series ESD protection arrays today and ensure high-speed, space-efficient electrostatic discharge protection for your digital circuits.
Frequently Asked Questions
Where can I buy ONSEMI CM123008CP?
You can click on the BUY or RFQ button to purchase CM123008CP from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CM123008CP?
You can download the CM123008CP datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CM123008CP?
ONSEMI
