ONSEMI CM140203CP EMI Filter Array
The CM1402 is a compact EMI filter array with integrated ESD protection, designed for mobile devices and electronic interfaces. It features three pi filters and two additional ESD-only channels, providing high-level protection against electrostatic discharges of +10 kV IEC 61000-4-2 and +25 kV HBM standards. Its small WLCSP package includes OptiGuard™ coating for enhanced reliability, making it ideal for SIM card slots, mobile handsets, and signal/data line protection in portable electronics. The device ensures effective noise suppression with greater than 30 dB attenuation at 1 GHz, supporting high-speed signals and ESD resilience.
ONSEMI CM140203CP EMI Filter Array Specifications:
- Package: WLCSP10, 1.96 mm x 1.33 mm footprint
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -65°C to +150°C
- Resistance of Ry: 80-120 Q
- Resistance of Re: 38-56 Q
- Capacitance: 16-24 pF at 1MHz, 30 mVac
- ESD Protection: +10 kV IEC 61000-4-2, +25 kV HBM
- Clamping Voltage: 5.6 V to 9.0 V during ESD discharge
- Attenuation: >30 dB at 1 GHz
- Peak Power: 300 mW per package, 100 mW per resistor
- Maximum DC Power per Resistor: 100 mW
- Peak Storage Temp: -65°C to +150°C
- Supply Voltage for ICC: 3V to 1.8V, with typical Vcc stabilization
- Compliance: RoHS, Pb-free, Halogen-free
- Application: SIM card interface, data port protection for mobile devices, EMI noise filtering

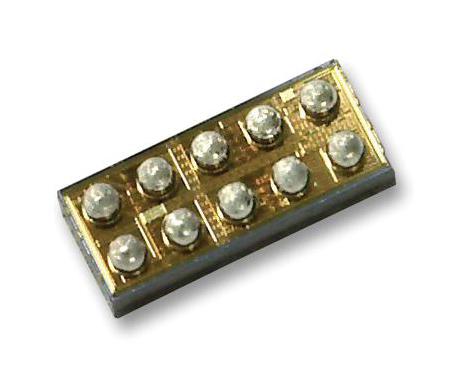

Buy the Buy ON Semiconductor CM1402 Part Number 03CP Online
Secure your electronic devices with the ON Semiconductor EMI Filter Array, ideal for SIM card slots and data line protection. This compact component offers high ESD withstand voltage of +10 kV IEC 61000-4-2 and +25 kV HBM, ensuring superior electrostatic discharge resilience. The integrated pi filters and additional ESD protection channels effectively suppress high-frequency noise, providing over 30 dB attenuation at 1 GHz for seamless high-speed signal transmission. Its WLCSP10 package with OptiGuard coating guarantees durability and easy assembly, perfect for portable electronics in demanding environments.
Order your ON Semiconductor CM1402 Series03CP today and enhance your mobile device's ESD and EMI protection with this compact, reliable filter array.
