ONSEMI FOD8173 Logic Gate Optocoupler
The FOD8173 series is a high-speed, logic gate optocoupler in a stretched body SOP 6-pin package, featuring aluminum gallium arsenide LEDs and CMOS detector ICs. Designed for industrial applications, it offers electrical insulation, high noise immunity, and a wide operating temperature range from 40°C to 100°C. It guarantees performance over 3 V to 5.5 V supply voltages with a data rate of 20 Mbit/sec, making it ideal for microprocessor interfacing, industrial fieldbus communication, and voltage level translation. Its high isolation and regulatory approvals ensure safety and reliability in demanding environments.
ONSEMI FOD8173 Logic Gate Optocoupler Specifications:
- Package: SOP 6-pin, stretched body
- Input Voltage: 3 V to 5.5 V
- Data Rate: 20 Mbit/sec
- Propagation Delay: 55 ns max.
- Temperature Range: -40°C to +100°C
- Isolation Voltage: 5,000 VACrms
- Insulation Resistance: > 10^9 Ω
- Output Voltage: 0.5 to VDD + 0.5 V
- Input Current: 20 mA max.
- Output Power Dissipation: 70 mW max.
- Reflow Profile Temperature: Peak 260°C
- Creepage & Clearance Distance: 8 mm & 7 mm respectively
- Compliance: UL1577, IEC60747-5-5 pending
- Certification: Safe electrical insulation suitable within rated data

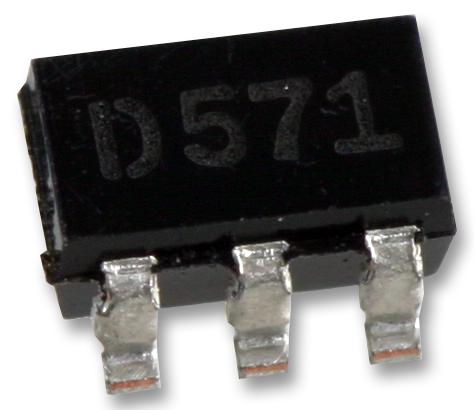

Buy the Buy ON Semiconductor FOD8173 Part Number FOD8173T Online
Order the high-speed ON Semiconductor FOD8173T optocoupler online now for reliable industrial communication and precise signal isolation. This compact, SOP 6-pin package offers an 20 Mbit/sec data rate, ensuring fast and accurate data transfer in automation and control systems. Suitable for microprocessor interfaces, fieldbus networks, and voltage level translation, it guarantees performance over a wide temperature range from -40°C to +100°C. Its high noise immunity, insulation ratings, and compliance with safety standards make it the ideal choice for demanding industrial applications. Purchase today for efficient, safe, and robust signal isolation in your projects.
Get ON Semiconductor FOD8173T today—built for high-speed data communication and industrial signal isolation.
Frequently Asked Questions
Where can I buy ONSEMI FOD8173?
You can click on the BUY or RFQ button to purchase FOD8173 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD8173?
You can download the FOD8173 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD8173?
ONSEMI
