ONSEMI LM2575D2T5R4G Adjustable Power Regulator
The LM2575 series step-down regulator is a versatile, high-efficiency DC-DC converter capable of delivering up to 1.0 A output current. It features an adjustable output voltage ranging from 1.23 V to 37 V, with fixed options at 3.3 V, 5 V, 12 V, and 15 V. Designed for minimal external components, it ensures reliable operation with cycle-by-cycle current limiting, thermal shutdown, and high efficiency, making it ideal for power supply applications, battery chargers, and high-performance switching regulators. Available in TO-220 and DPAK packages, it simplifies power design while providing excellent regulation and low ripple.
ONSEMI LM2575D2T5R4G Adjustable Power Regulator Specifications:
- Output Voltage Range: 1.23 V to 37 V +4% max
- Maximum Output Current: 1.0 A
- Input Voltage Range: 4.75 V to 40 V
- Switching Frequency: 52 kHz
- Package Types: TO-220, DPAK
- Thermal Resistance, Junction-to-Ambient: 65 °C/W (TO-220), 70 °C/W (DPAK)
- Max Junction Temperature: 125 °C
- Storage Temperature Range: -65°C to +150°C
- Thermal Shutdown and Current Limit Protection
- Voltage Tolerance on Output: ±4%
- Requires only 4 external components
- Efficiency: Up to 88% under typical conditions
- Supports inverting and buck-boost configurations
- Designed for minimal external component count and high line/load regulation

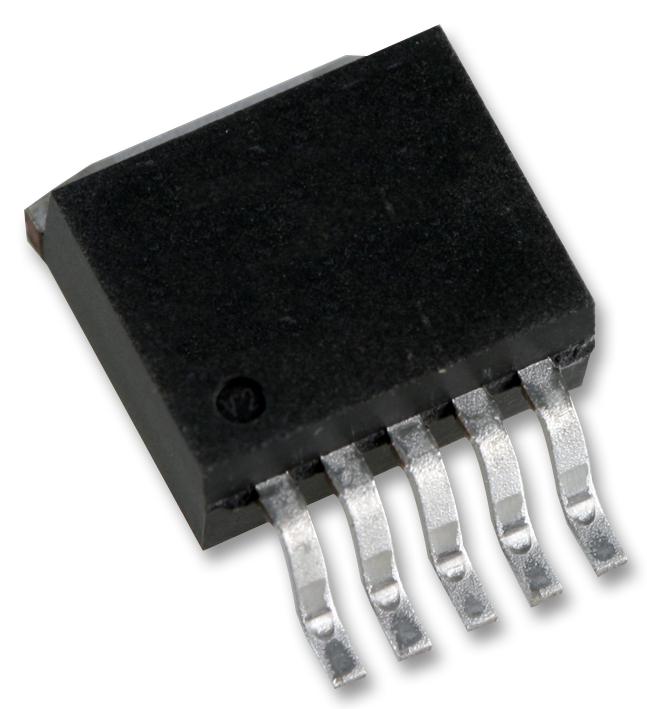

Buy the ON Semiconductor Series LM2575 Adjustable Step-Down Regulator: LM2575D2T5R4G
Order the ON Semiconductor LM2575D2T5R4G online today and experience a highly efficient, adjustable step-down regulator designed for reliable power management. This compact regulator provides up to 1.0 A of current with minimal external components, ensuring easy integration into your projects. Its thermal features, cycle-by-cycle current limiting, and thermal shutdown protect your circuits during fault conditions. Perfect for battery chargers, high-efficiency switching power supplies, and various electronic applications, this product guarantees long-lasting performance and consistent regulation, simplifying design and reducing costs.
Get ON Semiconductor LM2575D2T5R4G today—built for precision and long-lasting durability with adjustable output and high efficiency.
Frequently Asked Questions
Where can I buy ONSEMI LM2575D2T5R4G?
You can click on the BUY or RFQ button to purchase LM2575D2T5R4G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM2575D2T5R4G?
You can download the LM2575D2T5R4G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM2575D2T5R4G?
ONSEMI
