ONSEMI CM142203CP EMI Filter Array
The CM1420 and CM1422 are advanced EMI filter arrays with integrated ESD protection, suitable for portable electronics like wireless handsets, PDAs, and notebooks. They incorporate six and eight Pi-filters, respectively, with component values from 15 pF to 100 pF, offering over 30 dB attenuation at 1 GHz to 3 GHz. Each channel features ESD diodes capable of dissipating strikes exceeding +15 kV IEC standards and +30 kV HBM. The devices feature OptiGuard™ coating for enhanced reliability, are RoHS compliant, and come in space-saving chip scale packages, making them ideal for LCD data line protection and high-speed I/O data interfaces.
ONSEMI CM142203CP EMI Filter Array Specifications:
- Functionally and pin compatible with CSPEMI606 and CSPEMI608 devices
- Includes six (CM1420) and eight (CM1422) Pi-filters
- Component values: 15 pF — 100 pF (typical 15-18 pF)
- ESD protection: +15 kV IEC 61000-4-2 Level 4, contact discharge
- ESD diode protection: >+30 kV HBM, MIL-STD-883 Method 3015
- Attenuation: better than 30 dB at 1 GHz to 3 GHz
- Package: 15-bump, 2.96 mm x 1.33 mm (CM1420) and 20-bump, 4.00 mm x 1.46 mm (CM1422) chip scale packages
- Material: RoHS compliant, lead-free, OptiGuard™ coated for reliability
- Storage temperature: -65°C to +150°C
- Operating temperature: -40°C to +85°C
- Supply voltage and power ratings tailored for high-speed data line filtering

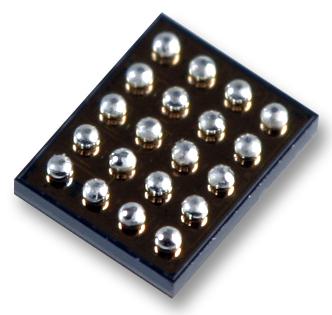

Buy the Buy ON Semiconductor CM1420 Part Number CM1420 Online
Enhance your portable device protection with the ON Semiconductor EMI Filter Array offering high-voltage ESD diodes, multiple Pi-filters, and space-saving chip scale packages. Designed for LCD data lines and high-speed I/O ports, these devices ensure excellent filtering performance with over 30 dB attenuation at 1 GHz to 3 GHz. RoHS compliant and OptiGuard™ coated, they are ideal for reliable, compact electronic systems requiring effective EMI suppression and electrostatic discharge withstand capability. Upgrade your electronics with these advanced, durable EMI filter arrays today.
Get ON Semiconductor CM1420 today—built for high-speed data line EMI filtering and robust ESD protection.
