ONSEMI DF005M Bridge Rectifier
The DF005M is a 4-pin single-phase bridge rectifier diode featuring a glass passivated junction. It offers low leakage current, a surge overload rating of 50A, and a maximum RMS bridge input voltage of 35V. The device operates reliably within a temperature range of -55°C to 150°C. Suitable for mains rectification applications, it provides high surge capacity and stability in power conversion circuits. With UL certification, this bridge rectifier ensures safety and consistent performance in industrial and consumer electronics.
ONSEMI DF005M Bridge Rectifier Specifications:
- Surge Overload Rating: 50 Amperes Peak
- Maximum Repetitive Reverse Voltage: 50V
- Maximum RMS Bridge Input Voltage: 35V
- DC Reverse Voltage at Rated IR: 50V
- Average Rectified Forward Current: 15A
- Storage Temperature Range: -55°C to +150°C
- Operating Junction Temperature: -55°C to +150°C
- Power Dissipation: 3.1 W
- Thermal Resistance, Junction-to-Ambient: 40 °C/W
- Forward Voltage, at 1.0A: 1.1 V
- Peak Forward Surge Current: 50A
- Physical Dimensions: 6.50 mm x 8.05 mm x 8.51 mm, DIP package
- UL Certified: UL #E258596

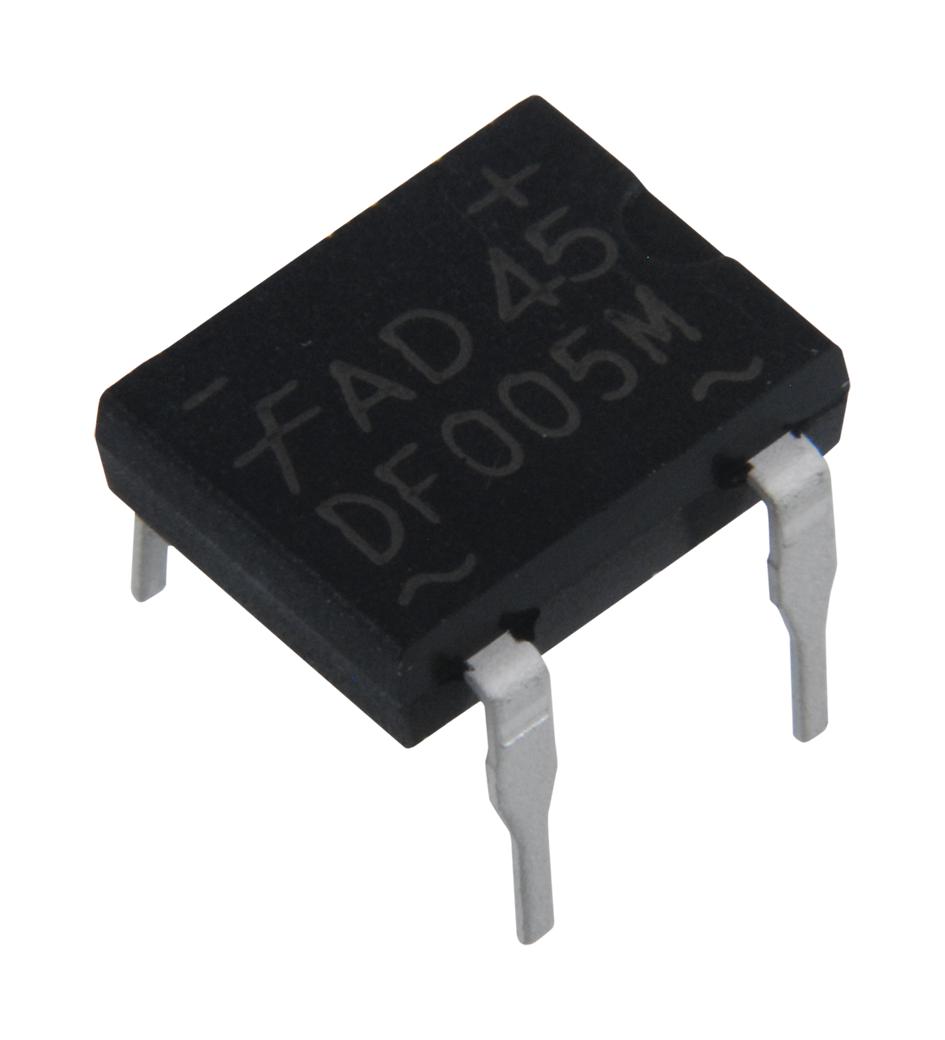

Buy the Fairchild DF005M – Reliable Bridge Rectifier for Industrial Applications
Get the Fairchild DF005M bridge rectifier online today for high-capacity, reliable power rectification in industrial and consumer electronics. Designed with a glass passivated junction, it features a surge overload rating of 50A, UL certification, and operation within a temperature range of -55°C to 150°C. Compact and durable, it ensures stable performance in mains power applications, making it ideal for power supplies, industrial equipment, and electronic circuits. Purchase now and enhance your project's reliability with trusted semiconductor components.
Order your Fairchild SeriesDF005M high-capacity bridge rectifier today and ensure reliable power conversion for industrial and electronic projects.
Frequently Asked Questions
Where can I buy ONSEMI DF005M?
You can click on the BUY or RFQ button to purchase DF005M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part DF005M?
You can download the DF005M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of DF005M?
ONSEMI
