ONSEMI EMI7112FCTAG EMI Filter Array
The EMI7112 is an advanced EMI filter array with integrated ESD protection, designed to suppress EMI and RFI noise in electronic devices. It features two Pi-filters (C-L-C) for effective noise reduction and provides +30 kV ESD protection on all input/output pins, ensuring high-level electrostatic discharge safety. Suitable for mobile phones and sensitive electronics, it offers greater than 45 dB attenuation at 900 MHz. Its compact WLCSP5 package ensures easy integration in space-constrained applications, delivering reliable performance under industrial temperature ranges.
ONSEMI EMI7112FCTAG EMI Filter Array Specifications:
- ESD Protection: +30 kV IEC 61000-4-2 Contact and Air Discharge
- Filtering: Two Pi-filters (C-L-C) with >45 dB attenuation at 900 MHz
- Maximum RMS Current: 350 mA per line
- Operating Voltage: 3.0 V to 7 V
- Breakdown Voltage: 6.0 V to 7 V
- Channel Leakage Current: 400 nA at 3.0 V
- Channel Resistance: 0.35 Ω
- Line Capacitance: 185–315 pF at 1 MHz
- Stop Band Attenuation: 47 dB at 900 MHz
- ESD In-system Withstand Voltage: +430 V (contact discharge), +430 V (air discharge)
- Package: WLCSP5, 1.26 x 0.89 mm
- Maximum Operating Temperature: -40°C to +125°C
- Lead Solder Temperature: 260°C (10 sec)
- Certifications: RoHS Compliant, Pb-Free

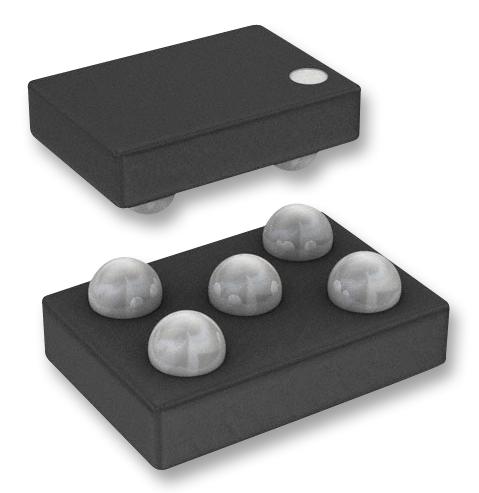

Buy the Buy ON Semiconductor EMI7112 FCTAG Part Number EMI7112 Online
Purchase the ON Semiconductor EMI7112FCTAG series EMI filter array online to enhance your electronic device’s EMI and RFI noise suppression capabilities. Featuring two Pi-filters for effective noise reduction and +30 kV ESD protection, this compact WLCSP5 package ensures space-efficient integration in mobile phones and sensitive electronics. Its high attenuation at 900 MHz and robust industrial temperature range make it ideal for demanding applications. Buy now to ensure high-performance, reliable EMI filtering and electrostatic protection for your critical electronic components with fast worldwide shipping and quality assurance.
Order your ON Semiconductor EMI7112FCTAG series EMI filter with ESD protection today and ensure your electronic devices are protected with reliable noise suppression and electrostatic discharge safeguarding.
Frequently Asked Questions
Where can I buy ONSEMI EMI7112FCTAG?
You can click on the BUY or RFQ button to purchase EMI7112FCTAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part EMI7112FCTAG?
You can download the EMI7112FCTAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of EMI7112FCTAG?
ONSEMI
