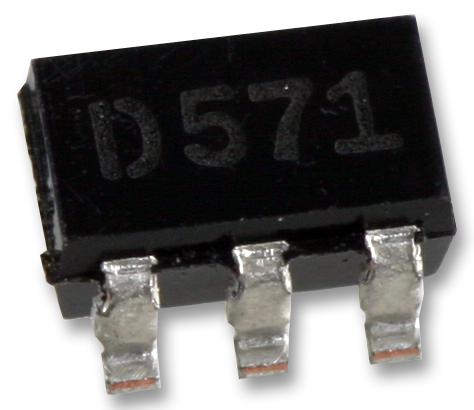

ONSEMI NTGS3446T1G Power MOSFET
The NTGS3446T1G is a high-performance N-channel Power MOSFET in TSOP-6 package, offering ultra low Rps(on) for power management in battery-powered devices such as laptops, cellular phones, and portable electronics. With a drain-to-source voltage of 20V and continuous drain current up to 25A, it provides high efficiency and fast switching. Ideal for applications requiring reliable, high-speed switching with low on-resistance, this MOSFET also features logic-level gate drive and high-speed, soft-recovery diode characteristics, suitable for power management and lithium-ion battery applications.
ONSEMI NTGS3446T1G Power MOSFET Specifications:
- Drain-to-Source Voltage: 20 V
- Gate-to-Source Voltage: ±12 V
- Total Power Dissipation: 0.5 W at 25°C, 1.0 W at 25°C (higher current models)
- Drain Current: 25 A continuous at 25°C, Pulsed 10 A
- Thermal Resistance Junction-to-Ambient: 244 °C/W, 128 °C/W, 625 °C/W depending on configuration
- Maximum Junction Temperature: -55°C to 150°C
- Maximum Lead Temperature for Soldering: 260°C for 10 seconds
- Body Diode Source Current: 5 A
- Capacitances: Ciss approximately 510-750 pF, Coss 200-350 pF
- Switching times: Turn-On delay 9.0-16 ns, Fall Time 20-35 ns
- Gate Charge: 8.0-15 nC
- Key features include ultra low Rps(on), high-speed diode, logic level gate drive, and Pb-Free package option.
Buy the Buy ON Semiconductor Power MOSFET Part Number NTGS3446T1G Online
Purchase the ON Semiconductor NTGS3446T1G Power MOSFET online to benefit from its high efficiency, ultra low Rps(on), and fast switching capabilities. This device is ideal for portable electronics, battery-powered applications, and power management systems. It features a 20V drain-to-source voltage, 25A continuous drain current, and a Pb-Free, TSOP-6 package designed for easy installation in compact devices. Order today to improve your electronic device performance with premium quality and verified specifications, backed by reliable supply chain support.
Order your ON Semiconductor NTGS3446T1G high-speed N-channel MOSFET today and enhance your power management with reliable, low Rps(on) performance.
Frequently Asked Questions
Where can I buy ONSEMI NTGS3446T1G?
You can click on the BUY or RFQ button to purchase NTGS3446T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTGS3446T1G?
You can download the NTGS3446T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTGS3446T1G?
ONSEMI
