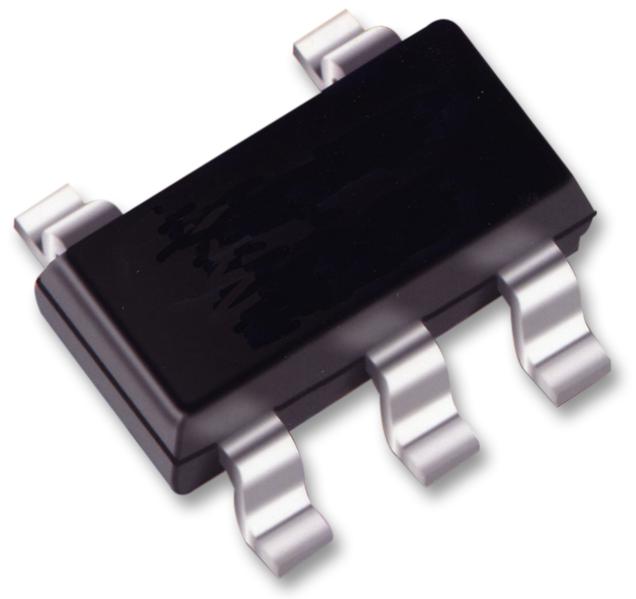

ONSEMI MC74VHC1G09DTT1G 2-Input CMOS AND Gate
The MC74VHC1G09 is a high-speed CMOS 2-input AND gate with open drain output, designed for interfacing different voltage levels between 5V and 7V. It offers fast switching times with a propagation delay of 4.3 ns at 5 V, low power consumption (1 μA typical), and protection features for input voltages up to 7 V. Suitable for various digital logic applications, it is available in SOT-23 and TSOP-5 packages, ensuring reliability, low dissipation, and compatibility with standard logic families.
ONSEMI MC74VHC1G09DTT1G 2-Input CMOS AND Gate Specifications:
- Device Type: 2-input AND gate with open drain output
- Propagation Delay: 4.3 ns at 5 V
- Supply Voltage Range: 2.0 V to 5.5 V
- Maximum DC Supply Voltage: 7.0 V
- Input Voltage Range: 0.0 V to 7.0 V
- Output Voltage Range: 0.0 V to 7.0 V
- Input Diode Current: -20 mA
- Output Diode Current: +20 mA
- DC Output Current per Pin: 425 mA
- Power Dissipation: 200 mW in still air
- Operating Temperature Range: -55°C to +125°C
- Package Types: SC-88A (SOT-353), TSOP-5 (SOT-23)
- ESD Withstand Voltage: >2000 V (Human Body Model)
- Lead Temperature for Soldering: 260°C for 10s
- Junction Temperature: +150°C
- Moisture Sensitivity Level: 1
Buy the Buy Semiconductor High-Speed CMOS AND Gate Part Number MC74VHC1G09D Online
Purchase the high-speed CMOS 2-input AND gate with open drain output online today. Perfect for interfacing 5V circuits to 7V systems, ensuring fast switching with delay around 4.3 ns. It offers low power consumption, robust input protection up to 7V, and is available in compact SOT-353 and TSOP-5 packages for versatile deployment. With excellent performance characteristics, this device guarantees reliable logic operations, easy integration into complex digital systems, and durability under various operating conditions. Buy now to optimize your digital logic design with top-grade components.
Order your Semiconductor SeriesMC74VHC1G09D high-speed CMOS AND gate today and enhance your digital projects with fast, reliable open drain logic components.
Frequently Asked Questions
Where can I buy ONSEMI MC74VHC1G09DTT1G?
You can click on the BUY or RFQ button to purchase MC74VHC1G09DTT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74VHC1G09DTT1G?
You can download the MC74VHC1G09DTT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74VHC1G09DTT1G?
ONSEMI
