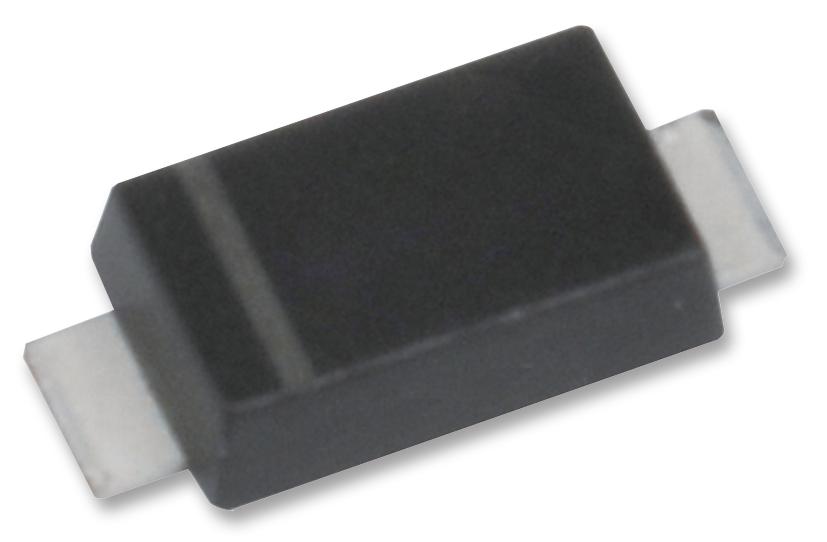

ONSEMI ES1DAF Ultrafast Rectifier
The ultrafast rectifiers ES1DAF and ES1JAF are surface-mount semiconductor devices designed for high-speed switching applications. Featuring glass passivated junctions, they offer fast switching speeds with maximum time of 35 nanoseconds and ultra-thin profiles with a height of just 1.0 mm. These devices are rated for peak repetitive reverse voltages of 200V and 600V respectively, with a forward current of 1A. They are compliant with UL 94V-0 flammability standards, RoHS, halogen-free, and Pb-free. Ideal for power conversion, rectification, and high-frequency circuits requiring reliable, compact, and efficient diodes.
ONSEMI ES1DAF Ultrafast Rectifier Specifications:
- Peak Recurrent Reverse Voltage: ES1DAF - 200V, ES1JAF - 600V
- RMS Voltage: ES1DAF - 140V, ES1JAF - 420V
- DC Blocking Voltage: ES1DAF - 200V, ES1JAF - 600V
- Average Forward Current: 1A
- Peak Forward Surge Current: 30A for 8.3 ms single half sine-wave
- Forward Voltage: ES1DAF - 0.95V, ES1JAF - 1.70V
- Reverse Recovery Time: up to 34 ns
- Junction Capacitance: 15 pF at 4V, 1 MHz
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Package: DO-214AD (SMAF), case 403AD
- Thermal Resistance Junction-to-Ambient: 150°C/W
- Thermal Resistance Junction-to-Lead: 24°C/W
- UL Flammability: 94V-0
- Compliance: RoHS, halogen-free, Pb-free
