ONSEMI KSD1616AYTA Silicon NPN Transistor
The KSD1616A is a silicon NPN epitaxial transistor suitable for audio frequency power amplification and medium speed switching applications. It features a compact TO-92 package, making it ideal for low to moderate power circuits. With a collector-emitter voltage of 60 V and collector current of 1 A, it is designed for general-purpose amplification and switching. This transistor offers high gain and low saturation voltage, ensuring efficient performance in various electronic systems. Its thermal resistance and maximum junction temperature support reliable operation within specified limits for diverse industrial and consumer electronics applications.
ONSEMI KSD1616AYTA Silicon NPN Transistor Specifications:
- Collector-Base Voltage: 120 V
- Collector-Emitter Voltage: 60 V
- Emitter-Base Voltage: 6 V
- Collector Current (DC): 1 A
- Pulse Collector Current: 2 A
- Junction Temperature: 150 °C
- Storage Temperature: -55 to 150 °C
- Total Device Dissipation: 0.75 W
- Thermal Resistance, Junction-to-Ambient: 160 °C/W
- Power Dissipation: 0.75 W
- Collector Gain Bandwidth Product: 100-160 MHz
- Collector Cut-Off Current: 100 nA at 60 V
- DC Current Gain (hFE): 135-400
- VBE(on): 600-700 mV at 50 mA
- Collector Saturation Voltage: 0.15-0.30 V
- Output Capacitance: 19 pF

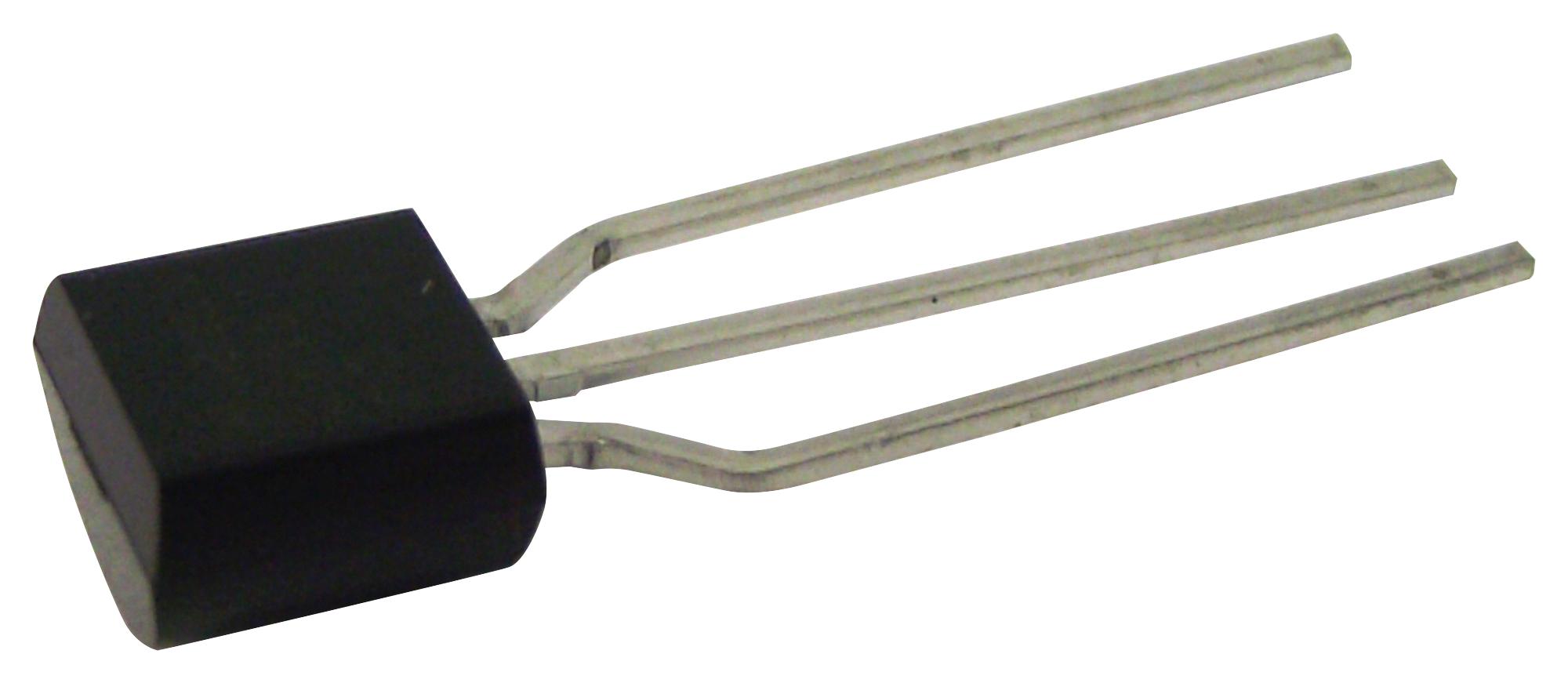

Buy the Buy ON Semiconductor KSD1616A Part Number KSD1616AYTA Online
Order the ON Semiconductor KSD1616A now and enjoy fast delivery of this high-efficiency NPN transistor. Perfect for audio amplification and switching, it offers 60 V collector-emitter voltage and 1 A collector current. Its compact TO-92 package is easy to incorporate into various circuits, ensuring stability and durability with a junction temperature of 150 °C. Optimize your electronic designs by purchasing this robust, versatile transistor online today for unmatched reliability and performance in industrial and consumer electronics applications.
Buy ON Semiconductor KSD1616A now and enhance your audio and switching circuits with a reliable, high-performance NPN transistor in TO-92 package.
Frequently Asked Questions
Where can I buy ONSEMI KSD1616AYTA?
You can click on the BUY or RFQ button to purchase KSD1616AYTA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part KSD1616AYTA?
You can download the KSD1616AYTA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of KSD1616AYTA?
ONSEMI
