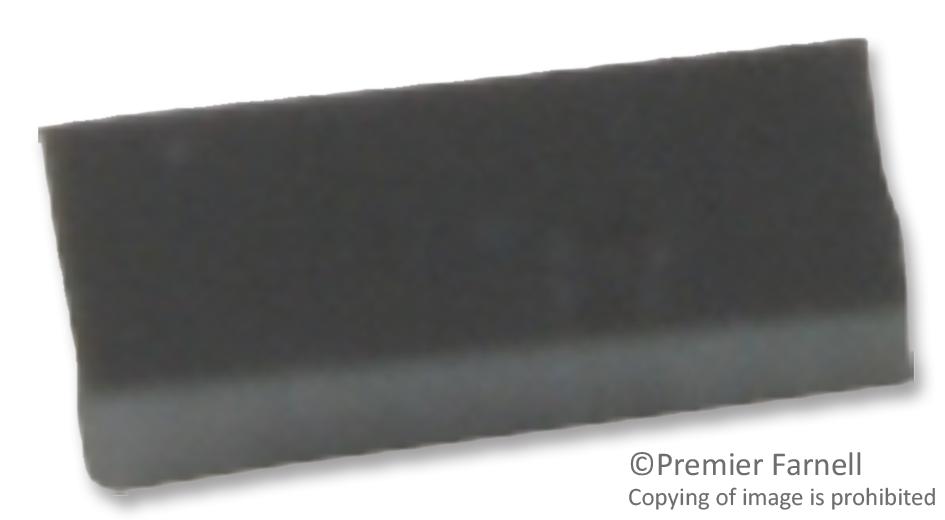

ONSEMI NSR10F40NXT5G Schottky Barrier Diode
The NSR10F40NXT5G is a high-performance Schottky barrier diode optimized for low forward voltage drop and minimal leakage current. Packaged in a compact chip scale package (CSP), it reduces board space and improves thermal management, making it ideal for space-constrained electronic systems. With a low forward voltage of 490mV at 1A and reverse leakage of 10µA at 10V, it ensures efficient operation and fast switching speeds. Applications include LCD backlighting, camera flashes, DC-DC converters, reverse protection, and general circuit protection. Its industry-standard ESD ratings and eco-friendly features enhance product reliability in portable and consumer electronics.
ONSEMI NSR10F40NXT5G Schottky Barrier Diode Specifications:
- Reverse Voltage: 40 V
- Forward Current: 1.0 A
- Surge Current (60 Hz, 1 cycle): 18 A
- Repetitive Peak Forward Current: 40 A
- ESD Rating: Human Body Model >8 KV, Machine Model > 400 V
- Thermal Resistance Junction-to-Ambient: 85°C/W typical
- Total Power Dissipation: 1.47 W at 25°C
- Storage Temperature Range: -40°C to +125°C
- Junction Temperature: +150°C
- Forward Voltage: 0.42 V to 0.49 V at 0.5A
- Reverse Leakage Current: 10 µA at 10 V, 100 µA at 40 V
- Package: DSN2 1.4x0.6 mm, 0.75 pin pitch
Buy the ON Semiconductor Series 10Fxx Schottky Barrier Diode: NSR10F40NXT5G
Purchase the ON Semiconductor NSR10F40NXT5G Schottky barrier diode online today to ensure your electronics achieve optimal efficiency and protection. Its compact CSP package saves valuable space and features low forward voltage and leakage current for high-performance power conversion, circuit protection, and switching applications. Suitable for LCD backlighting, camera flashes, and DC-DC converters, this diode aligns with industry standards for ESD resilience and eco-friendliness. Buy now to integrate this reliable diode into your design and enjoy enhanced durability and efficiency in your electronic projects.
Buy ON Semiconductor NSR10F40NXT5G now and experience unmatched reliability and performance in high-speed, low-voltage protection applications.
Frequently Asked Questions
Where can I buy ONSEMI NSR10F40NXT5G?
You can click on the BUY or RFQ button to purchase NSR10F40NXT5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NSR10F40NXT5G?
You can download the NSR10F40NXT5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NSR10F40NXT5G?
ONSEMI
