ONSEMI ESD8006MUTAG High-Speed ESD Protection Diode Array
The ESD8006 is a low capacitance ESD protection diode array designed specifically for high-speed data lines like USB 3.0, Thunderbolt, and DisplayPort. It features ultra-low capacitance of 0.25 pF, providing excellent protection against electrostatic discharge while maintaining signal integrity. Its flow-through package ensures easy PCB layout and matched trace lengths for differential signals. The device is AEC-Q101 qualified, RoHS compliant, and suitable for automotive and consumer electronics applications. It offers excellent ESD clamping voltage, superior latch-up immunity, and complies with IEC 61000-4-2 standards for robust high-speed data interface protection.
ONSEMI ESD8006MUTAG High-Speed ESD Protection Diode Array Specifications:
- Low Capacitance: 0.25 pF max (I/O to GND)
- Protection IEC Standards: IEC 61000-4-2 Level 4
- ESD Clamping Voltage: Low voltage clamp suitable for high-speed data lines
- Temperature Range: -55°C to +125°C
- Dielectric Strength: withstands IEC 61000-4-2 ESD events up to ±8 kV contact/discharge
- Package: UDFN8, 3.3x1.0 mm footprint, Pb-Free, RoHS compliant
- Qualified for automotive: AEC-Q101 Capable
- Peak Surge Current: 16A per pulse (TLP testing)
- Dynamic Resistance: 0.44 Ω (Pin2 to Pin4)
- Capacitance at 1 MHz: 0.32 pF (typical at zero bias)

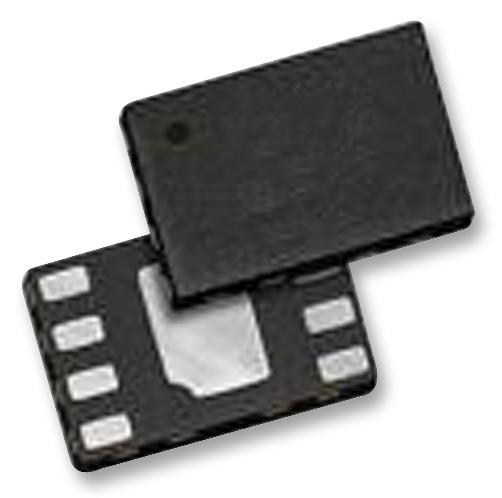

Buy the ON Semiconductor Series ESD8006 Low Capacitance ESD Protection Diode: ESD8006MUTAG
Protect your high-speed USB 3.0, Thunderbolt, and DisplayPort interfaces with the ESD8006 diode array. Featuring ultra-low capacitance of 0.25 pF, it ensures minimal signal interference while providing IEC 61000-4-2 Level 4 ESD protection. Its flow-through package simplifies PCB assembly and helps maintain matched differential trace lengths for signal integrity. Industry-grade qualification and RoHS compliance make this device ideal for consumer electronics and automotive applications. Order online today for reliable, high-performance ESD protection in demanding environments.
Get ON Semiconductor ESD8006MUTAG today—built for high-speed data line protection with ultra-low capacitance and robust ESD tolerance.
