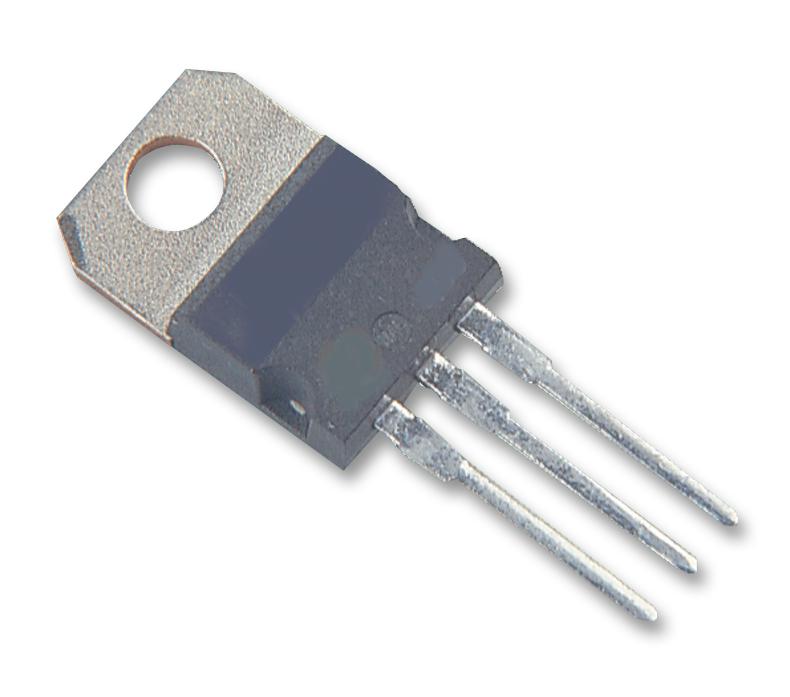

ONSEMI LM337BTG Negative Voltage Regulator
The LM337BTG is an adjustable three-terminal negative voltage regulator capable of outputting over 1.5A with a voltage range from -1.2V to -37V. It is easy to implement, requiring only two external resistors to set the desired output voltage. The device features internal protections such as current limiting, thermal shutdown, and safe area compensation, making it highly reliable and resistant to failure. Suitable for various applications including local or on-card regulation, it can also be configured as a programmable or a precision current regulator by connecting an additional resistor. The regulator supports floating operation for high-voltage applications and reduces the need for stocking multiple fixed-voltage regulators. It is ideal for industrial and power management applications.
ONSEMI LM337BTG Negative Voltage Regulator Specifications:
- Output Current in Excess of 1.5 A
- Output Voltage Range: -1.2 V to -37 V
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Safe Area Compensation
- Floating Operation for High Voltage Applications
- Requires only two external resistors to set output
- Supports remote, on-card regulation and programmable configurations
- Available in Surface Mount DPAK and TO-220 packages
- Pb-Free and RoHS Compliant
- Operating Junction Temperature: -40°C to +125°C
- Maximum Input-Output Voltage Differential: 40 V
- Maximum Power Dissipation: 20 W
- Thermal Resistance Junction-to-Case: 5.0°C/W
- Line Regulation: 0.02 - 0.07%, Load Regulation: 0.015 - 0.07%, Dropout Voltage: 1.25 V at 1.5 A
Buy the ON Semiconductor Series D2PAK LM337: LM337BTG
Buy the ON Semiconductor Series D2PAK LM337BTG now and enhance your power supply circuits with this highly reliable, adjustable negative voltage regulator. Designed for ease of use, it requires just two external resistors to set your desired output voltage from -1.2V to -37V, supporting currents over 1.5A. With internal protections including thermal shutdown, current limiting, and safe area compensation, it guarantees durability under tough conditions. Suitable for local, on-card, and high-voltage power regulation, this device is available in industry-standard packages and fully compliant with RoHS standards. Order today and improve your power management systems effortlessly.
Order your ON Semiconductor Series D2PAK LM337BTG today and optimize your power regulation with a reliable, adjustable negative voltage regulator designed for demanding applications.
Frequently Asked Questions
Where can I buy ONSEMI LM337BTG?
You can click on the BUY or RFQ button to purchase LM337BTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM337BTG?
You can download the LM337BTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM337BTG?
ONSEMI
