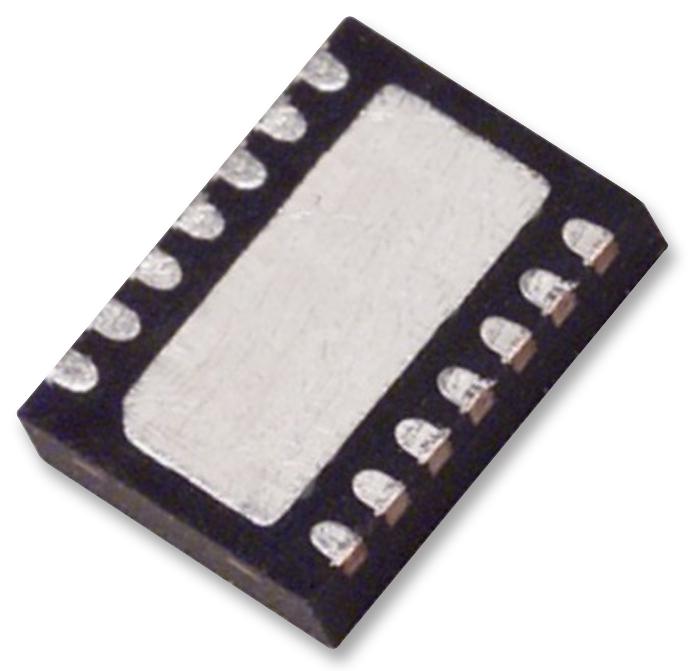

ONSEMI ESD8008MUTAG ESD Protection Diode Array
The ESD8008 is a high-speed, low-capacitance ESD protection diode array designed to safeguard four differential data lines in various electronic applications. Its ultra-low 0.35 pF capacitance and low clamping voltage effectively protect sensitive high-speed data signals such as V-by-One HS, LVDS, and DisplayPort. With IEC 61000-4-2 Level 4 ESD immunity up to ±15 kV contact discharge and lightning protection, plus RoHS and Pb-Free compliance, this device ensures robust, reliable performance in automotive and consumer electronics environments. It features a flow-through package for simplified PCB layout and maintains consistent impedance to preserve signal integrity.
ONSEMI ESD8008MUTAG ESD Protection Diode Array Specifications:
- Number of channels: 4 differential pairs (8 lines)
- Capacitance: 0.35 pF max between I/O and GND
- Maximum ESD protection: IEC 61000-4-2 Level 4, ±15 kV contact
- Lightning surge protection: 5 A (8/20 µs)
- Maximum Peak Pulse Current: 5.0 A
- Operating Junction Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Lead Solder Temperature (10 sec): 260°C
- Package: UDFN14, 5.5 x 1.5 mm, halogen and BFR free, RoHS compliant
- Compliance: AEC-Q101 qualified for automotive applications
- Flammability Rating: UL 94V-0
Buy the ON Semiconductor Series ESD8008 Low Capacitance ESD Protection Diode: ESD8008MUTAG
Secure your high-speed data lines with the ESD8008MUTAG from ON Semiconductor. This low-capacitance, high-performance ESD protection diode array provides robust defense against electrostatic discharge and lightning surges, meeting IEC 61000-4-2 Level 4 standards. Its flow-through package simplifies PCB layout, ensures impedance consistency, and supports demanding applications such as V-by-One HS, LVDS, and DisplayPort. Reliable, RoHS compliant, and automotive qualified, this device is essential for safeguarding sensitive electronic components in compact, high-speed systems.
Get ON Semiconductor ESD8008MUTAG today—built for precision, high-speed data line protection, and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy ONSEMI ESD8008MUTAG?
You can click on the BUY or RFQ button to purchase ESD8008MUTAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESD8008MUTAG?
You can download the ESD8008MUTAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESD8008MUTAG?
ONSEMI
