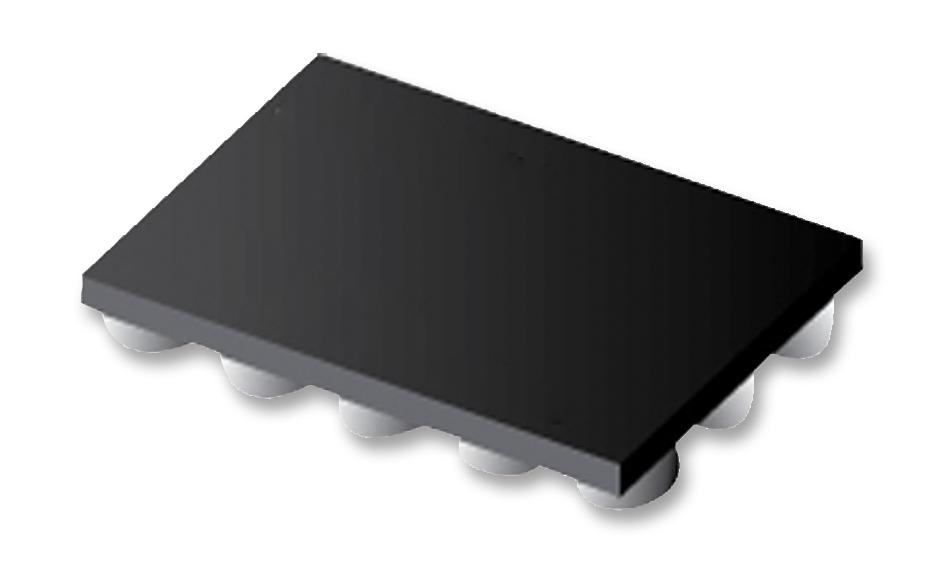

ONSEMI FAN53527UC84X High-Efficiency Power Regulator
The FAN53527 is a high-efficiency, step-down switching voltage regulator capable of delivering 3.0 A continuous current with over 80% efficiency. It supports an input voltage range of 2.5 V to 5.5 V and offers flexible operation modes, including I²C programmable output voltage in 6.25 mV steps, auto PFM, and Forced PWM mode at 2.4 MHz. The device features thermal shutdown, overcurrent protection, low quiescent current, and supports ceramic output capacitors. It is available in a compact wafer-level chip-scale package (WLCSP) suitable for space-constrained designs, ideal for powering processors, memory modules, and portable devices.
ONSEMI FAN53527UC84X High-Efficiency Power Regulator Specifications:
- Input Voltage Range: 2.5 V to 5.5 V
- Output Current Capability: 3.0 A
- Nominal Switching Frequency: 2.4 MHz
- Efficiency: >80% at full load
- Output Voltage Programmable: 1 V to 1.39375 V in 6.25 mV steps
- Operating Temperature Range: -40°C to +125°C junction, -40°C to +85°C ambient
- Thermal Shutdown: Yes, activates at approximately 150°C
- Overcurrent and Overvoltage Protection: Yes
- Quiescent Current: 48 μA in active mode, <1 μA in shutdown
- Chip Package: Wafer-Level Chip-Scale Package (WLCSP), 15 bumps, 1.31 mm x 2.02 mm, 0.4 mm ball pitch
Buy the Buy ON Semiconductor FAN53527UC84X Part Number 3A High-Efficiency Regulator Online
Order the ON Semiconductor FAN53527UC84X online today to harness a high-performance, programmable power regulator suitable for powering processors, memory modules, and portable electronics. Its 3.0 A continuous load capacity, efficient operation over a wide input voltage range, and compact wafer-level package make it ideal for space-constrained applications. Take advantage of its low quiescent current, thermal shutdown, and flexible mode operation, ensuring stable power delivery, reduced power consumption, and excellent transient response for your demanding electronic designs.
Buy ON Semiconductor FAN53527UC84X now and experience unmatched reliability, versatile I²C programmability, and compact design for power management solutions.
Frequently Asked Questions
Where can I buy ONSEMI FAN53527UC84X?
You can click on the BUY or RFQ button to purchase FAN53527UC84X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FAN53527UC84X?
You can download the FAN53527UC84X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FAN53527UC84X?
ONSEMI
