ONSEMI ESD7351HT1G ESD Protection Diode
The ESD7351 Series is a highly reliable ESD protection diode designed with ultra-low capacitance of 0.6 pF max, ideal for high-speed data lines like USB 2.0 and antenna applications. It offers excellent clamping voltage, fast response time under 1 ns, low leakage, and low dynamic resistance, making it suitable for protecting sensitive electronics from ESD and transient voltage events. RoHS compliant, halogen and BFR free, these devices are qualified for automotive and other demanding environments, ensuring durability and safety in compact designs.
ONSEMI ESD7351HT1G ESD Protection Diode Specifications:
- Reverse Working Voltage: 3.3 V
- Breakdown Voltage: 5.0 V at 1mA
- Reverse Leakage Current: <50 nA at 3.3 V
- Clamping Voltage: 8.0 V at 1A, 10 V at 3A
- Junction Capacitance: 0.43-0.6 pF at Vr = 0 V, 1 MHz
- Maximum Reverse Peak Pulse Current: 1.0 A
- Stand-off Voltage: 3.3 V
- Maximum Total Power Dissipation: 150 mW
- Junction and Storage Temperature Range: -55°C to +150°C
- Lead Solder Temperature: 260°C for 10 seconds
- Package Options: SOD-323, SOD-523, SOD-923
- RoHS, Halogen, and BFR free, AEC-Q101 qualified, PPAP capable

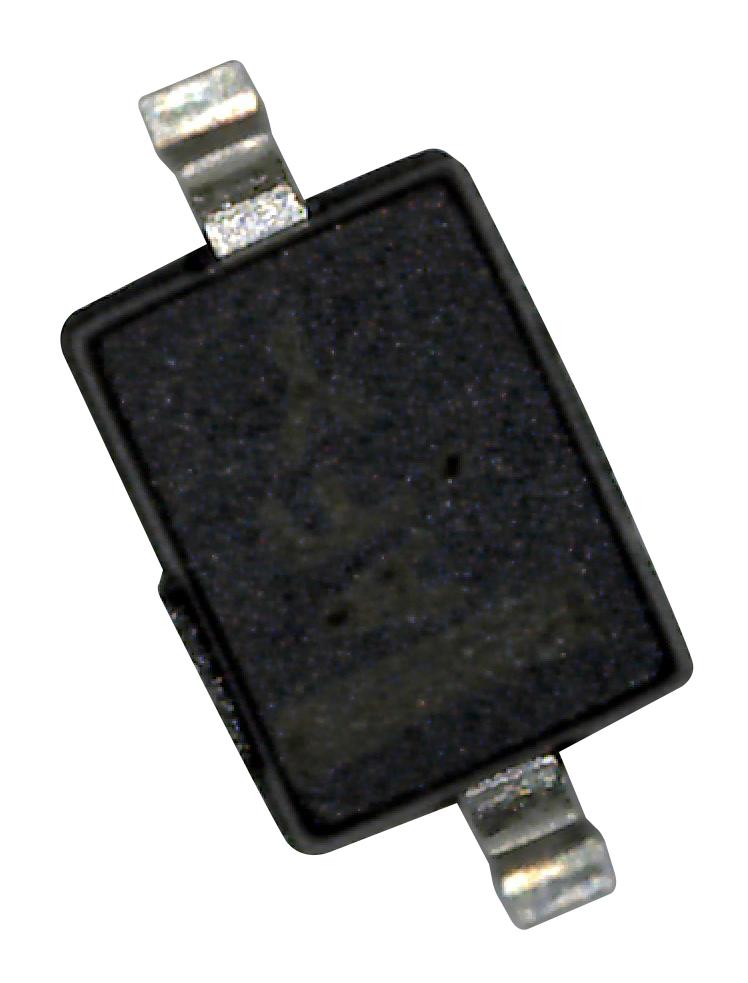

Buy the ON Semiconductor Series ESD7351 ESD Protection Diode: ESD7351HT1G
Secure your electronic devices from electrostatic discharge by ordering the ON Semiconductor Series ESD7351 ESD Protection Diode. Designed for high-speed data lines like USB 2.0 and RF applications, this diode features ultra-low capacitance of 0.6 pF, ensuring minimal signal distortion. It has a fast response time of less than 1 ns, low leakage current, and excellent clamping voltage to protect sensitive components. Available in compact packages such as SOD-323, SOD-523, and SOD-923, it is RoHS compliant and qualified for demanding automotive and industrial environments. Purchase online today to enhance your circuit protection with proven reliability and compliance with industry standards.
Order your ON Semiconductor Series ESD7351 ESD Protection Diode today and safeguard your high-speed signals with reliable, low capacitance ESD protection.
Frequently Asked Questions
Where can I buy ONSEMI ESD7351HT1G?
You can click on the BUY or RFQ button to purchase ESD7351HT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESD7351HT1G?
You can download the ESD7351HT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESD7351HT1G?
ONSEMI
