ONSEMI FAN6240M6X Synchronous Rectifier Controller
The FAN6240M6X is a high-performance secondary-side synchronous rectifier controller optimized for flyback converters operating in Discontinuous Conduction Mode (DCM). It features adaptive dead-time control, supports high-frequency applications up to 200 kHz, and includes wide voltage range capability up to 30 V for LDO inputs. Designed for efficient power management, it minimizes body diode conduction with adaptive thresholds and blanking times, ensuring robust operation against circuit noise. Its small SOT-23 package makes it ideal for compact, high-efficiency power supplies in portable electronic devices.
ONSEMI FAN6240M6X Synchronous Rectifier Controller Specifications:
- Supports high-frequency applications up to 200 kHz
- Supports input voltage from 28 V to 30 V
- Supports LDO input voltage up to 30 V
- Minimum turn-on delay: 20 ns
- Adaptive dead-time control for minimized body diode conduction
- Small SOT-23 6-pin package, 1.6 mm width
- Power dissipation: 23 mW at 25°C
- Operating junction temperature: -40°C to 150°C
- VDD regulation output: 5 V, with bypass capacitor 1 µF
- Supports gate drive voltage up to 6.5 V, drain sense input up to 100 V
- Turn-on threshold: 3.1 V to 3.7 V, turn-off threshold: 28 V to 29 V
- Tj max: 150°C, storage temp: -60°C to 150°C
- Human Body Model ESD: 15 kV, Charged Device Model ESD: 15 kV
- Max input supply voltage: 30 V, Max drain sense voltage: 100 V

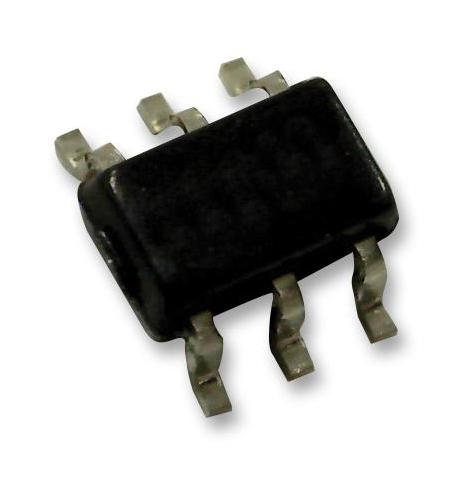

Buy the Buy ON Semiconductor FAN6240M6X Part Number FAN6240M6X Online
Purchase the ON Semiconductor FAN6240M6X online now to ensure reliable, efficient power conversion in portable and compact electronic devices. This high-performance SR controller features adaptive dead-time control, supporting applications up to 200 kHz and input voltages up to 30 V. Its small SOT-23 package makes it ideal for space-constrained designs, and the robust noise immunity guarantees stable operation even under challenging conditions. Order now for fast delivery and improve your power supply's efficiency and reliability with this proven component.
Order your ON Semiconductor FAN6240M6X today and enhance your flyback converter's efficiency with this robust, compact synchronous rectifier controller designed for high-frequency power applications.
Frequently Asked Questions
Where can I buy ONSEMI FAN6240M6X?
You can click on the BUY or RFQ button to purchase FAN6240M6X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FAN6240M6X?
You can download the FAN6240M6X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FAN6240M6X?
ONSEMI
