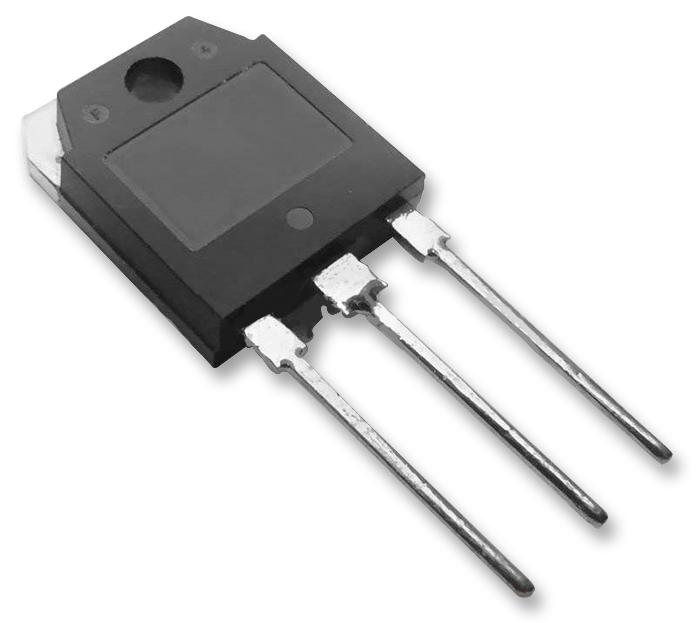

ONSEMI FCA36N60NF High-Voltage N-Channel MOSFET
The high-voltage N-Channel SupreMOS MOSFET is designed with advanced super-junction technology utilizing deep trench filling, delivering low Rsp on-resistance and excellent switching performance. With a drain-source voltage of 600 V and continuous drain current of 34.9 A at 25°C, it is ideal for high-frequency power converters such as solar inverters, power supplies, and industrial applications. Its rugged construction and ultra-low gate charge of 86 nC ensure reliable operation, high efficiency, and system robustness. Repeated avalanche tested and RoHS compliant, it meets demanding industry standards.
ONSEMI FCA36N60NF High-Voltage N-Channel MOSFET Specifications:
- Drain to Source Voltage: 600 V
- Gate to Source Voltage: ±30 V
- Continuous Drain Current: 34.9 A at 25°C
- Pulsed Drain Current: 104.7 A
- Maximum Avalanche Energy: 1800 mJ
- Repetitive Avalanche Energy: 3.12 mJ
- Thermal Resistance, Junction to Case: 0.40°C/W
- Thermal Resistance, Case to Heat Sink: 0.24°C/W
- Thermal Resistance, Junction to Ambient: Max 40°C/W
- Operating and Storage Temperature Range: -55°C to +150°C
- Gate Charge: 86 nC at 10 V
- Output Capacitance, Coss: 338 pF, typ.
- Output Capacitance, Vos: 145 to 195 pF
- Switching Rise Time: 17 to 44 ns
- Safe Operating Area: Max drain current varies with case temperature, up to 108 A pulsed
- Package: TO-3PN, 30 units per reel
Buy the Buy ON Semiconductor SupreMOS Part Number FCA36N60NF Online
Purchase the ON Semiconductor FCA36N60NF high-voltage N-Channel MOSFET online today to ensure high efficiency and dependable power switching in your applications. This advanced SupreMOS device features a drain-source voltage of 600 V, continuous drain current up to 34.9 A, and low gate charge of 86 nC, making it ideal for solar inverters, AC-DC power supplies, and industrial power converters. Its rugged construction, Repeated Avalanche testing, and RoHS compliance guarantee long-term reliability and performance in demanding environments. Shop now to enhance your system’s efficiency!
Buy ON Semiconductor FCA36N60NF now and experience unmatched reliability and high-voltage switching performance for power conversion and industrial systems.
Frequently Asked Questions
Where can I buy ONSEMI FCA36N60NF?
You can click on the BUY or RFQ button to purchase FCA36N60NF from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FCA36N60NF?
You can download the FCA36N60NF datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FCA36N60NF?
ONSEMI
