ONSEMI MC78M12CDTG Voltage Regulator
The MC78M12CDTG is a positive linear voltage regulator similar to the MC7800 series but designed to provide half the typical output current. It features three-terminal regulation suitable for local, on-board applications. Built-in internal components include current limiting, thermal shutdown, and safe-area compensation for the pass transistor, ensuring robustness across operating conditions. It can deliver a maximum output current of up to 500mA with adequate heat sinking. The device requires no external components and offers internal thermal overload protection, short-circuit current limiting, and safe-area transistor compensation. Primarily used in power management applications.
ONSEMI MC78M12CDTG Voltage Regulator Specifications:
- Maximum Output Current: 500 mA
- Output Voltage: 12 V
- Input Voltage Range: 6.0 V to 18 V, up to 24 V in some models
- Thermal Resistance, Junction-to-Case: 50°C/W (TO-220), 50°C/W (DPAK-3)
- Operating Junction Temperature Range: -40°C to +125°C
- Package Types: TO-220, DPAK-3
- Built-in current limiting, thermal shutdown, safe-area pass transistor compensation
- No external components required
- Pb-Free device and AEC-Q100 qualified
- Dimensions vary by package: TO-220 (50 units/rail), DPAK-3 (75 units/rail or 2500 units/tape reel)

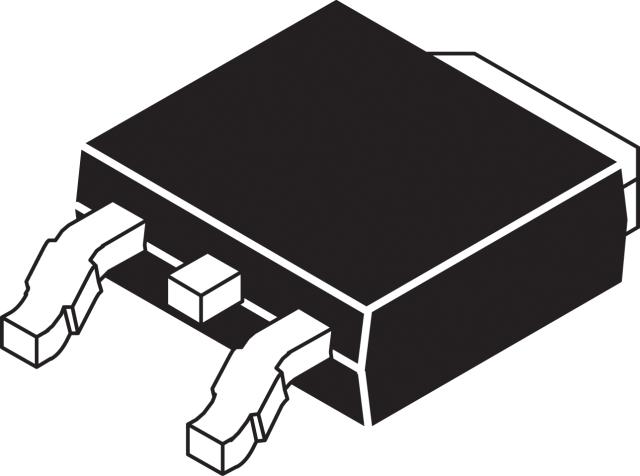

Buy the Buy ON Semiconductor MC78M12CDTG Part Number MC78M12CDTG Online
Secure your ON Semiconductor MC78M12CDTG online today and benefit from a robust, high-accuracy 12V positive voltage regulator designed for power management. With a maximum output current of 500mA, internal current limiting, thermal shutdown, and safe-area pass transistor compensation, it ensures dependable operation even under extreme conditions. The device requires no external components, simplifying your design process. Choose from TO-220 or DPAK-3 packages, both Pb-Free and AEC-Q100 qualified, ideal for local, on-card regulation in various electronic applications. Get yours now for reliable power solutions.
Order your ON Semiconductor Series MC78M12CDTG today and ensure reliable power regulation for your electronic projects with maximum current of 500mA.
Frequently Asked Questions
Where can I buy ONSEMI MC78M12CDTG?
You can click on the BUY or RFQ button to purchase MC78M12CDTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC78M12CDTG?
You can download the MC78M12CDTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC78M12CDTG?
ONSEMI
