ONSEMI FCMT250N65S3 High-Voltage Power MOSFET
The ON Semiconductor SuperFET III MOSFET is a high-voltage N-channel device designed for efficient power switching in industrial, telecom, UPS, and solar applications. With a drain-source voltage of 650 V and a continuous drain current of 12 A, it features ultra-low gate charge (24 nC) and low output capacitance (248 pF), ensuring minimal switching losses and excellent efficiency. Packaged in a compact Power88 surface-mount package, it offers superior switching performance, lower parasitic inductance, and robust avalanche and temperature ratings to withstand extreme operating conditions.
ONSEMI FCMT250N65S3 High-Voltage Power MOSFET Specifications:
- Drain-Source Voltage: 650 V
- Continuous Drain Current: 12 A
- Gate Threshold Voltage: 25-45 V
- On-Resistance (Vos = 10 V, Ip=6A): 210-250 mΩ
- Gate Charge (Vps=400 V, Ip=6A): 24 nC
- Output Capacitance (Vps=0 to 400 V, Veg=0): 248 pF
- Avalanche Energy (Single Pulsed): 57 mJ
- Repetitive Avalanche Energy: 9 mJ
- Thermal Resistance, Junction to Case: 1.39 °C/W
- Operating Temperature Range: -55°C to +150°C

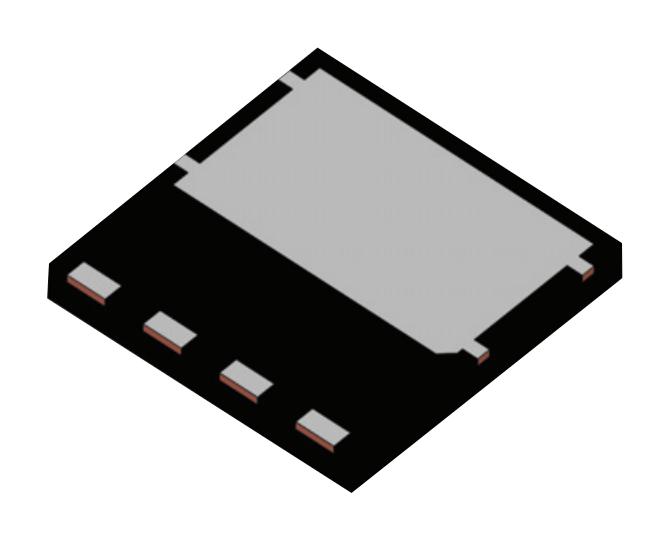

- Package Type: Power88 surface-mount, 8x8 mm footprint, 1 mm height
- RoHS Compliant, 100% Avalanche Tested, Moisture Sensitivity Level 1
Buy the Buy ON Semiconductor FCMT250N65S3 Part Number 650V 12A MOSFET Online
Purchase the ON Semiconductor FCMT250N65S3 high-voltage N-channel MOSFET online today. This robust device offers 650 V drain-source voltage and 12 A continuous current, ensuring dependable performance in industrial, telecom, UPS, and solar applications. Its ultra-low gate charge of 24 nC and low output capacitance make switching efficient and reduce system losses. Compact in Power88 package, it provides superior switching performance, improved EMI management, and extreme temperature resilience, making it an ideal choice for demanding power management solutions.
Order your ON Semiconductor FCMT250N65S3 power MOSFET today and enhance your industrial, telecom, or solar power systems with reliable high-voltage switching.
