ONSEMI HGTG12N60A4D High Voltage IGBT Module
The HGTG12N60A4D is a 600V N-channel IGBT with an anti-parallel hyper-fast diode, combining high input impedance of MOSFETs with low on-state conduction loss of bipolar transistors. Optimized for high-frequency switch mode power supplies, it offers reduced conduction and switching losses and operates efficiently across a wide temperature range from -55°C to +150°C. Suitable for high-voltage switching, it features a fall time of approximately 70 nanoseconds at 125°C, making it ideal for industrial, consumer, and power conversion applications requiring reliable high-voltage switching with low energy dissipation.
ONSEMI HGTG12N60A4D High Voltage IGBT Module Specifications:
- Collector to Emitter Voltage: 600V
- Collector Current Continuous: 60A at 25°C
- Collector Current Pulsed: 167A
- Gate to Emitter Voltage Continuous: ±30V
- Gate to Emitter Voltage Pulsed: ±30V
- Switching Safe Operating Area at Ty: 60A
- Power Dissipation Total at Tc: 300W
- Operating Junction Temperature Range: -55°C to +150°C
- Maximum Soldering Temperature: 260°C for 10s
- Fall Time: approximately 70ns at 125°C
- Turn-On Delay Time: approximately 17ns at 25°C
- Turn-Off Delay Time: approximately 96ns at 25°C
- Gate Charge (Qgon): 78-96nC at 12A
- Collector to Emitter Breakdown Voltage: 600V
- Gate to Emitter Threshold Voltage: around 5.6V
- Recovery Times: about 30-18ns depending on conditions

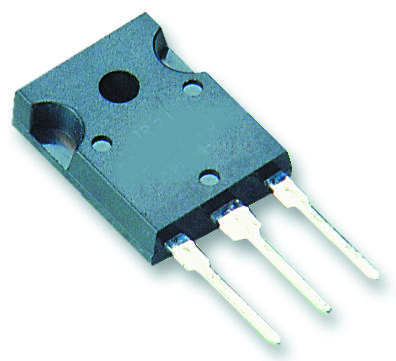

Buy the Buy ON Semiconductor HGTG12N60A4D Part Number HGTG12N60A4D Online
